Product Details

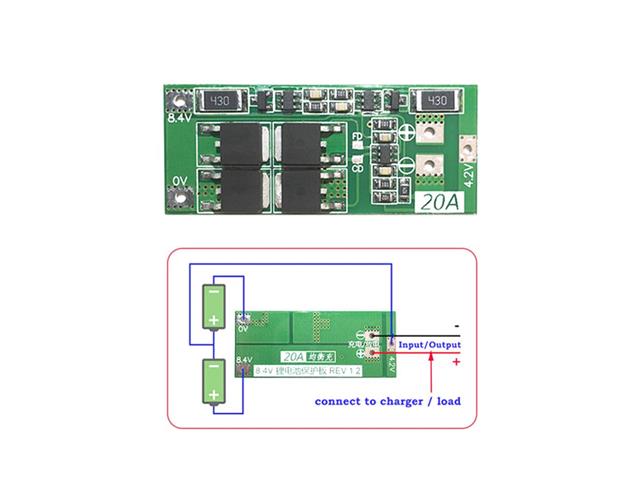

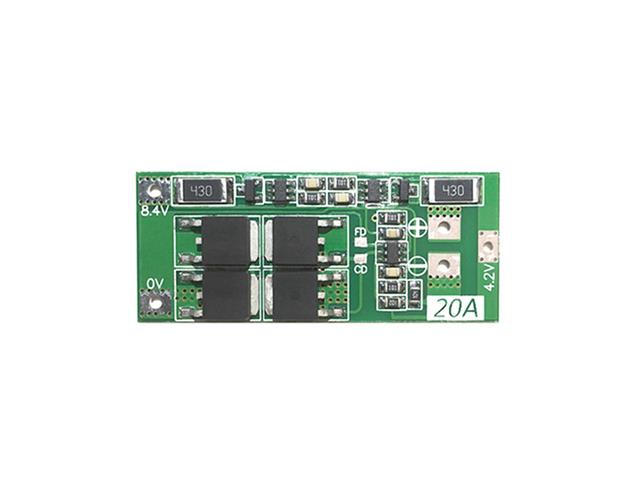

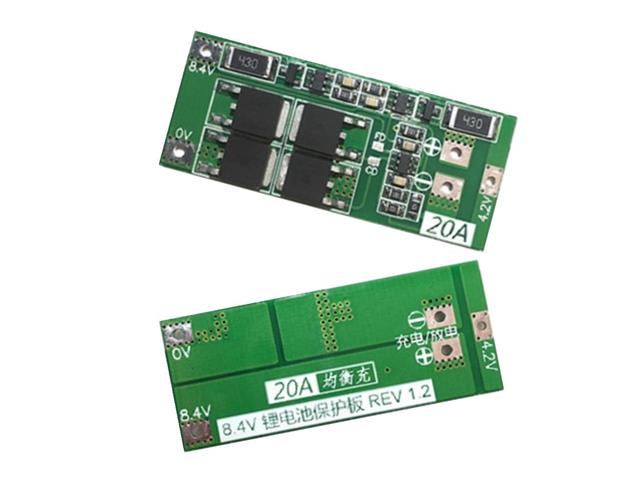

2S 7.4V 8.4V 18650 Lithium Battery Protection Board 20A
Lithium Battery Protection Board
Specifications
- Product model : HW-391
- Charging Voltage : DC 8.4-9V
- Version: Balance
- Continuous discharge current : maximum 20A (if heat dissipation environment is not good, please reduce the use of load current)
- Continuous charging current : maximum 10A
- Applicable Choice : For lithium batteries with nominal voltage of 3.7V and charge of 4.2V (including 18650, 26650 and polymer lithium batteries), can start-up current 25A, power
- less than 50W electric drill, or 168W resistive load
- Product size : 48mm*20mm*4mm/1.88*0.78*0.15''
- Packing weight : 3g
Additional Information
| Device | Protection Board |
| Type | Lithium Battery |
