Product Details

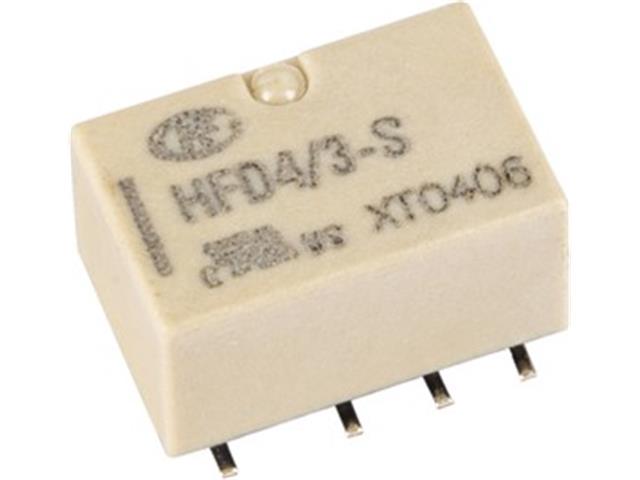

Signal Subminiature Mini Sealed Surace. Mount .(SMD) Relay Form 2C (2c/o) 3VDC 64,3 Ohm Coil 2A 30VDC 0,5A 125VAC (250VAC Max.) - Gold Flash Contacts
Signal Subminiature Mini Sealed Surace. Mount .(SMD) Relay Form 2C (2c/o)
Additional Information
| Device | Relay |
| Type | Subminiature | Sealed Surace | Mount |
| Contact Form | Form 2C (2c/o) |
| Termination | SMD |
| Coil Rated Voltage | 3V |
| AC/DC Voltage | DC |
| Electrical Rating | 2A 30VDC 0,5A 125VAC (250VAC Max.) |
| Coil Resistance | 64.3Ω |
| Contact Material | Gold Flash Contacts |
