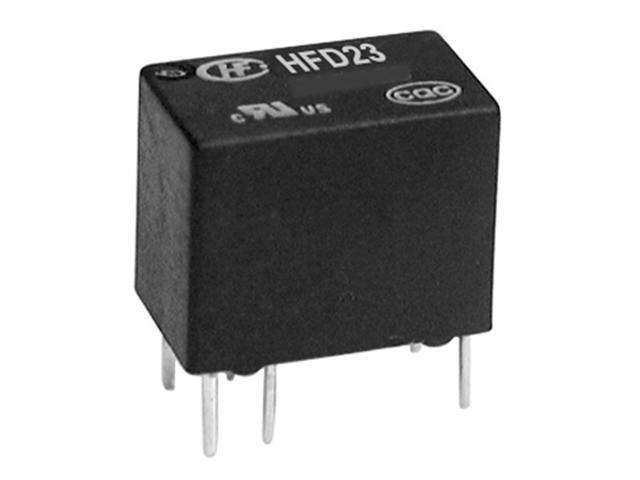

HFD23-024-1ZS

Subminiature Signal Relay, Form 1C, VCoil= 24V DC, IMax Switching= 2A , RCoil= 3.84k?, PCB, in Vertical Case
Specifications
Sensitive Coil

Additional Information
Model : HFD23-024-1ZS
Contact Form : Form 1C
Size Category : Submini
Size : 12.5x7.5x10mm
Termination : PCB
Coil Rated Voltage : 24V
AC/DC Voltage : DC
Max. Switching Current : 2A
Electrical Rating : 0.5A 125VAC | 1A 30VDC
Coil Power : 150mW Power
Coil Resistance : 3.84k?
Isolation Voltage : 1KV
Approvals : UL/CUL
Contact Material : AgNi + Au plated
No. of Pins : 6 Pin(s)
No. of Poles : 1 Pole(s)
