Product Details

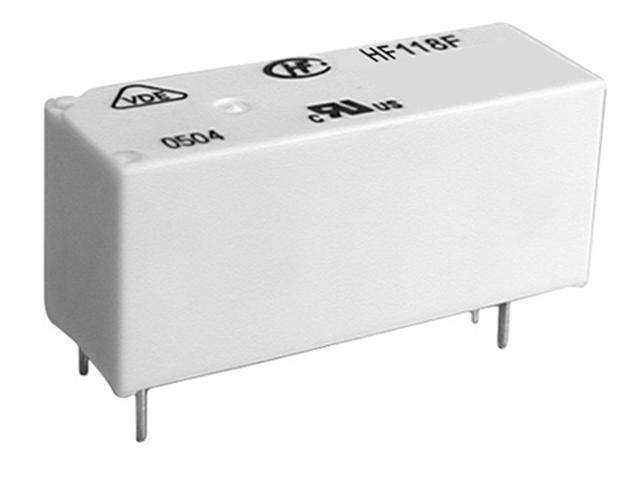

Miniature High Power Relay, Form 1C, VCoil= 12V DC, IMax Switching= 8A , RCoil= 620Ω, PCB, in Low Profile Case
Overview
Features
- Plastic Sealed
- Low Profile Case
- ≥8mm Creepage Distance
- 3.2mm Pin Pitch
Specification
| rm | : | Form 1C |
| Size Category | : | Mini |
| Size | : | 28,5x10,1x12,5mm |
| Termination | : | PCB |
| Coil Rated Voltage | : | 12V |
| AC/DC Voltage | : | DC |
| Max. Switching Current | : | 8A |
| Electrical Rating | : | 10A | 250VAC |
| Coil Power | : | 290mW Power |
| Coil Resistance | : | 620O |
| Isolation Voltage | : | 5Kv |
| Approvals | : | UL/CUL/VDE |
| Contact Material | : | AgNi |
| No. of Pins | : | 5 Pin(s) |
| No. of Poles | : | 1 Pole(s) |
