Product Details
4K HDMI KVM Over IP Extender is based on TCP/IP Standard. It Transmits Max 120 meters from your HDMI or DVI-D Source to HD Display by Single CAT5E/6 Cable.

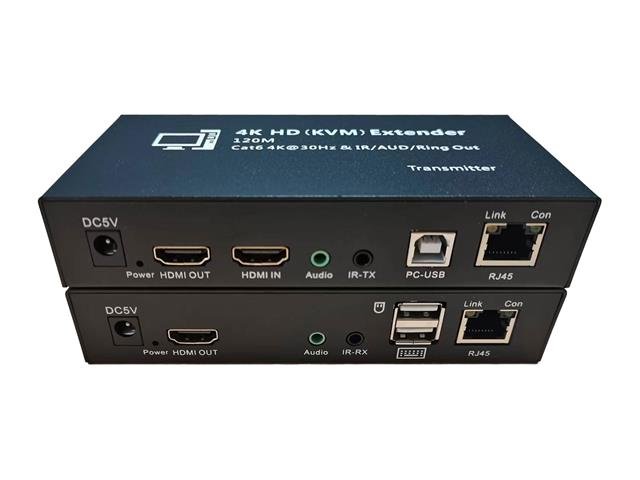

4K HDMI KVM Over IP Extender
Features
- Brand new and high quality
- The 120m HDMI extender use single cat5 or cat-6(recommended) cables up to 120 metres. HDMI extender over cat5/cat6 is designed to convert HDMI signal to standard TCP/IP and transmit by internet cable or Lan. With the advantage of TCP/IP standard, it can transmit HDMI signal source from HD STB, DVD, PS3, HDMI display etc to HD projector, DLP, LCD, LED and other audio visual equipment
- Each set includes one sender and one receiver
- Follow the standard of IEEE-568B
- Support resolution up to 1080p full HD
- Support Ethernet bandwidth 120m
- HDCP compliant
- Supports resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
- Extends by router connection or LAN connection, cable length requirements are as follows:
- CAT5 80 meters maximum between two devices
- CAT5e 100 meters maximum between two devices
- CAT6 120 meters maximum between two devices
Downloads
Additional Information
| Device | Extender |
| Type | 4K | HDMI | KVM Over IP |
