Product Details

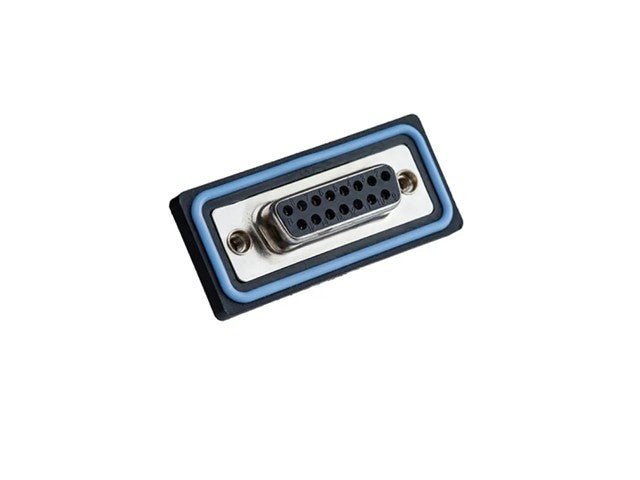

Waterproof D-Sub Hight Density 15W Female Panel Solder IP68
D-Sub Hight Density 15W Female Panel
Specifications
|
Connector Type |
Receptacle, Female Sockets |
|
Number of Positions |
15 |
|
Number of Rows |
3 |
|
Mounting Type |
Panel Mount |
|
Shell Size, Connector Layout |
1 (DE, E) High Density |
|
Contact Type |
Signal |
|
Flange Feature |
Mating Side, Female Screwlock (4-40) |
|
Termination |
Solder Cup |
|
Shell Material, Finish |
Steel, Nickel Plated |
|
Contact Finish |
Gold |
|
Ingress Protection |
IP68 - Dust Tight, Waterproof |
|
Current Rating (Amps) |
2A |
|
Features |
Shielded |
|
Color |
Black |
|
Dielectric Material |
Polybutylene Terephthalate (PBT) |
|
Contact Material |
Copper Alloy |
|
Operating Temperature |
-40°C ~ 105°C |
Additional Information
| Device | Panel |
| Type | D-Sub | Hight Density | 15W | Female |
| Gender | Female |
| No. of Contacts | 15 |
| No. of Pins | 15 |
| Termination | Solder |
| Assembly Style | Solder |
| Mating Style | Screw |
| Backshell | Straight |
| Degree of Protection | IP68 |
