Product Details

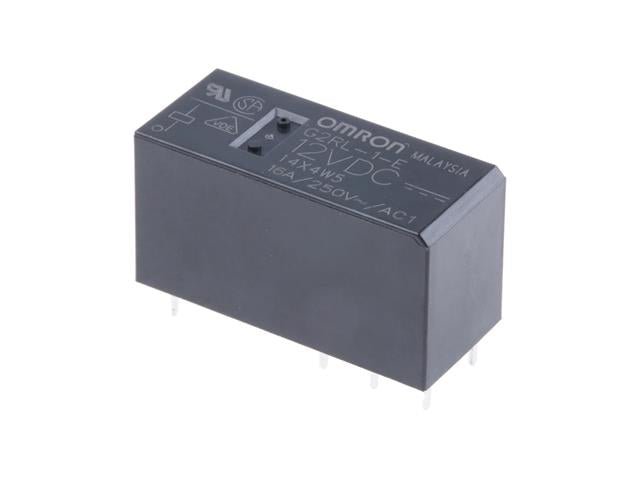

High Power Mini Flux Proof Lo Profile Relay Form 1U (1c/o) 5mm Contact Spacing 12VDC 360 Ohm Coil 16A 250VAC (440VAC/300VDC Max.) - Class F Insulation
Mini Flux Proof Lo Profile Relay
Specifications
- Coil Voltage : 12V dc
- Coil Power : 400mW
- Coil Resistance : 360 Ω
- Isolation Coil To Contact : 5kV ac
- Contact Configuration : SPDT
- Mounting Type : PCB Mount
- Switching Current : 16A
- Terminal Type : Through Hole
- Length : 29mm
- Maximum Switching Power AC : 4 kVA
- Height : 15.7mm
- Series : G2RL
- Depth : 12.7mm
Downloads
Additional Information
| Device | Relay |
| Type | Mini | Flux | Proof | Lo | Profile |
