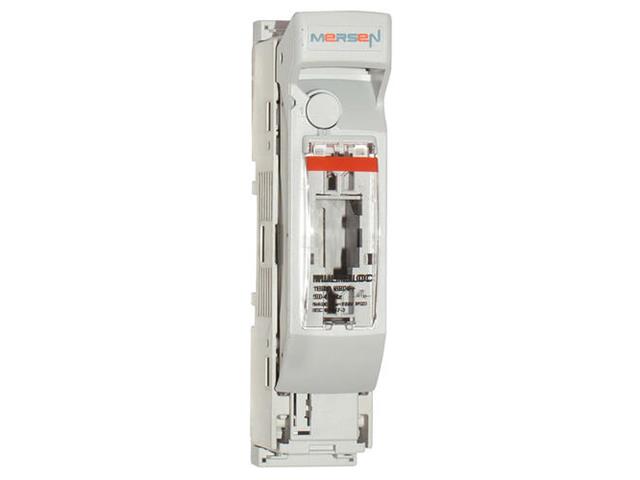

The production programme of MULTIBLOC® series 00.ST8 comprises NH fuse switch disconnectors for 160A. They are designed for bottom fitting/panel installation and are available in single pole, double pole and quadruple pole units. For installation of MULTIBLOC® NH fuse switch disconnectors in distribution units with central cover, respective covers are used to obtain a uniform profile in height and length. MULTIBLOC® size 00 are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00, 160A. MULTIBLOC® offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance.

• Volts (VAC) : 690 VAC
• Volts (VDC) : 220 VDC
• Ampere (A) : 160 A
• Size per Standard : 00
• Mounting : Bottom Fitting/panel

• SCCR

  • Ue = AC 400 V
  • Ie = 160 A 80kA Ue = AC 500 V
  • Ie = 160 A 80kA Ue = AC 690 V
  • Ie = 125 A 50kA

• Number of Poles1

• 1
• 2
• 4
• Standards : IEC/EN 60 947-3 For NH-fuse links size 000/00 in accordance with IEC/EN 60 269-2, VDE 0636-2

Application

• House incoming units
• Meter distribution units
• Measuring transformer cabinets
• Transmitting stations for telecommunications
