RS030 Simple Encoder Kit with 8pole Magnets + 2 Hall Effect Sensors
Overview
Features

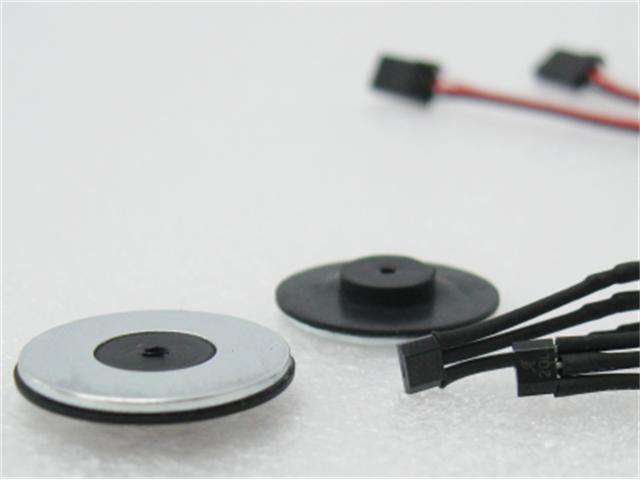

- The simple encoder kit from DAGU consists of two neodymium 8-pole magnets with rubber hubs and two hall-effect sensors terminated with 150mm (6inch) cable and 3 pin female servo headers
- The magnets have 4 north poles and 4 south poles and are strong enough that the sensor can detect the poles from more than 3mm (1/8inch)
- This means that the sensors do not need to be precisely mounted to detect the poles
- The rubber hubs will press fit over most small motor and drive shafts used in low power gearboxes
- A small screw may also be used to attach the magnets in some cases
- The hall-effect sensors will work on voltages from 3V to 24V and include reverse polarity protection
- The open drain output, when fitted with an external pullup resistor will drive any logic circuit from 3V to 24V and can also drive a LED or any other small load less than 25mA
- These sensors can plug directly into any DAGU, Arduino compatible controller and use the processors internal pullup resistors eliminating the need for any external components or wiring
Specification
- Supply voltage: 3V-24V
- Supply current: 4mA per sensor
- Output voltage: 26V maximum
- Output current: 25mA continuous
- Output type: Open drain
- Wiring :
- White wire: Output
- Red wire: +3V to 24V
- Black wire: Ground (0V)
