Product Details

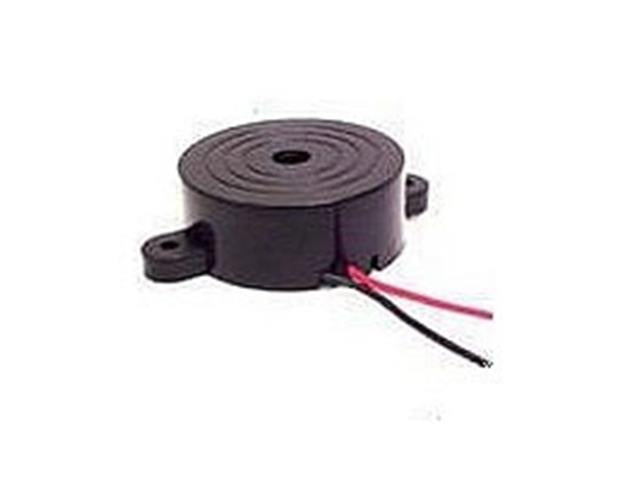

Piezo Buzzer Fast Pulse Leaded 12VDC (OV=3-28VDC) 9MA 2,9KHZ 90dB/30cm 41.8X16mm
Piezo Buzzer Fast Pulse Leaded 12VDC
Specifications
- Operating Voltage Range (VDC) : 3.0 ~ 28.0
- Rated Voltage (VDC) : 12.0
- Max. Rated Current (mA) : 9.0
- Min. Sound Output (dBA/ 30 cm) 90.0
- Frequency (Hz) : 2900 +/- 500
- Tone Nature : Fast Pulse (1 min 95 times)
- Operating Temperature (º C) - 20~ +60
- Terminal: Leadwire (UL1007, AWG#28)
- Housing Material : ABS
- Weight (g) : 15.0
Downloads
Additional Information
| Device | Buzzer |
| Type | Piezo | Fast Pulse | Leaded | 12VDC |
