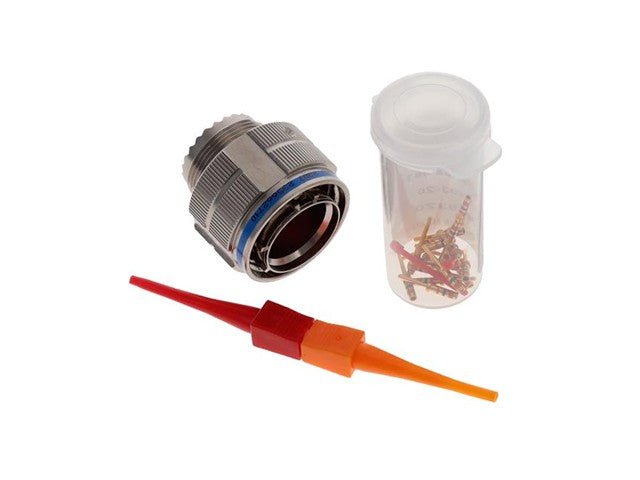

MILSPEC 18 Pin Plug Straight
MILSPEC 18 Pin Plug Straight
Specifications
- Connector Type: Plug, Male Pins
- Number of Positions: 18
- Grade: Military
- Qualification: MIL-DTL-38999 Series III
- Shell Size – Insert: 15-18
- Shell Size, MIL: D
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Termination: Crimp
- Fastening Type: Threaded
- Orientation: N (Normal)
- Primary Material: Metal
- Shell Material: Aluminum
- Shell Finish: Electroless Nickel
- Contact Finish – Mating: Gold
- Color: Silver
- Ingress Protection: Environment Resistant
- Material Flammability Rating: -
- Features: Coupling Nut
- Shielding: Shielded
- Current Rating (Amps): -
- Voltage Rating: 600VAC, 850VDC
- Cable Opening: -
- Operating Temperature: -65°C ~ 200°C
- Backshell Material, Plating: -
- Contact Material: Copper Alloy
- Contact Finish Thickness – Mating: 50.0µin (1.27µm)
- Insert Material: -
- Applications: Aerospace, Aviation, Marine, Military
Additional Information
| Device | Connector |
| Type | 18 Pin Plug Straight |
