Product Details

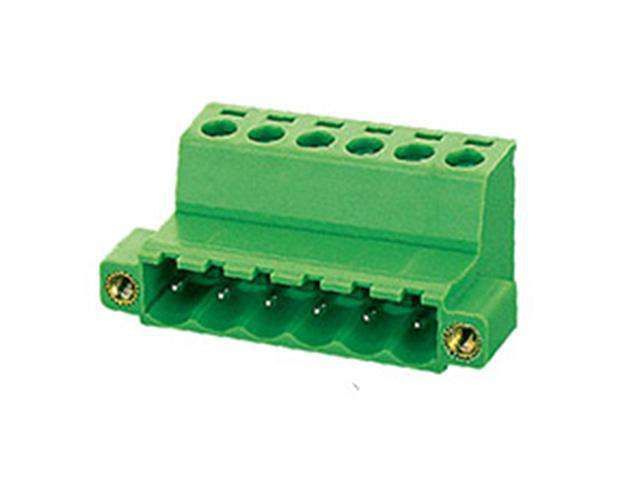

5mm 15A 300V Plug in Terminal Block with 6 Pins, Screw Clamp and Plug-In Header
Overview
Features
 Electrical
- Standard : UL
- Rated voltage : 300V
- Rated current : 15A
- Wire range : 28-12AWG
- Withstanding voltage : 4KV
- Torque : 0.4Nm(3.5Lb-In.)
- Ambient temperature : -40°C~+105°C
- Strip length : 7mm

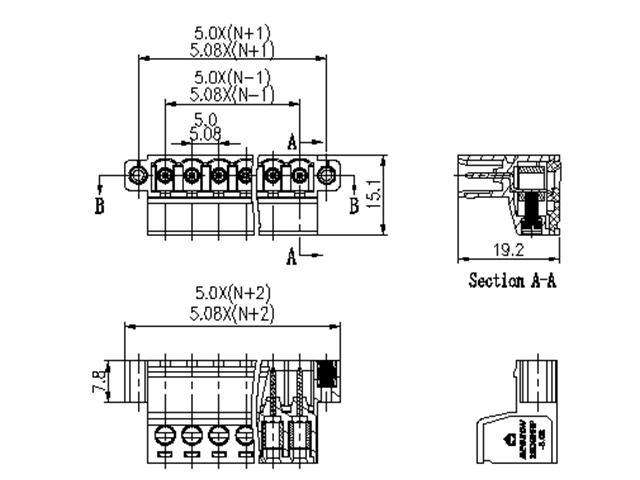

- Pitch : 5.0mm(.197"),5.08mm(.200")
- Poles : 2P-22P
- Housing : PA66,UL94V-0
- Contact : Copper
- Cage : Brass, Ni plated
- Nut : M2.5,Brass
Â
Specification
Â
| Gender | Male |
| No. of Pins | 6 |
| Mates With | CPF5-6FV |
| Size | 5mm |
| Electrical Rating | 300V 15A |
| Wire Range | 28-12AWG |
