Product Details

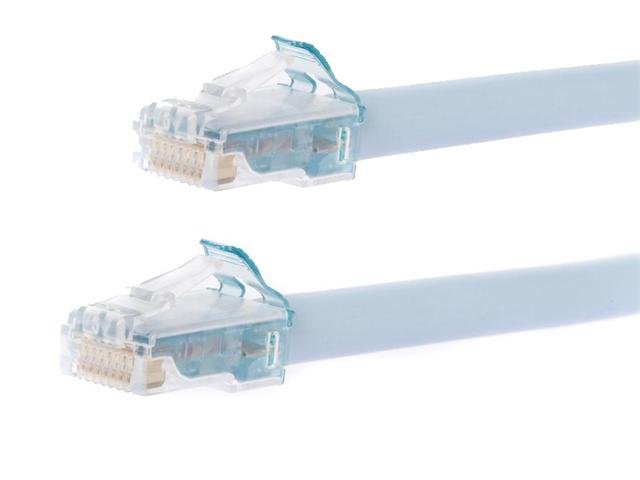

4m Gigaspeed X10 360GSE10 Cat6A Solid LSZH Modular Patch Cable in Light Blue Colour
Cat6a UTP Cable
Specifications
Electrical Specifications
- ANSI/TIA Category : 6A
- DC Resistance, maximum : 0.30 ohm
- Safety Voltage Rating : 300 V
Environmental Specifications
- Environmental Space : Low Smoke Zero Halogen (LSZH)
- Flammability Rating : UL 94 V-0
- Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
- Safety Standard : cETL | ETL
General Specifications
- Cable Type : U/UTP (Unshielded)
- Interface, connector A : RJ45 plug
- Interface, connector B : RJ45 plug
- Jacket Color : Light blue
- Brand : GigaSPEED X10D® | SYSTIMAX 360™ | SYSTIMAX®
- Interface Feature, Connector A : Standard
- Interface Feature, Connector B : Standard
- Package Quantity : 1
- Pairs, quantity : 4
Mechanical Specifications
- Conductor Type : Solid
- Material Type : Copper alloy | Polycarbonate
- Outlet/Module Contact Plating : Precious metals
- Plug Insertion Life, minimum : 750 times
- Plug Retention Force, minimum : 133 N | 30 lbf
- Wiring : T568B
Regulatory Compliance/Certifications
- Agency : Classification
- RoHS 2011/65/EU : Compliant
- ISO 9001:2008 : Designed, manufactured and/or distributed under this quality management system
Downloads
Additional Information
| Device | Cable |
| Type | Cat6A | UTP | Solid |
| Housing | Light Blue |
| Cable Length | 4m |
| Cable End 1 | RJ-45 |
| Cable End 2 | RJ-45 |
