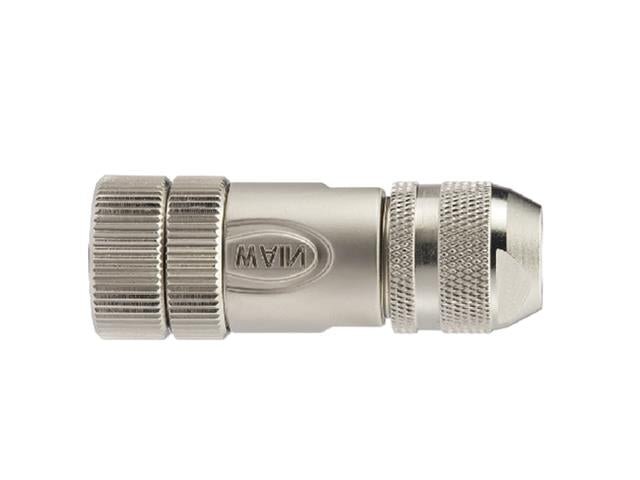

Circular Connector M12 D COD Cable Female Straight. 4 Pole Crimp Contacts (Sold Separately) PG9 Cable Entry - Shielded with Shield. Ring IP67
M12 D COD Cable Circular Connector
Specifications
| Technical characteristics |
| Number of contacts |
4 |
| Rated current (40℃) |
4A |
| Rated voltage |
250V |
| Rated impulse voltage |
2500V |
| Pollution degree |
3 |
| Overvoltage categorie |
II |
| Contact resistance |
≤10mΩ |
| Connector locking system |
screw M12x1 |
| Termination |
crimp |
| Wire gauge |
max.0.82mm2(max.AWG18) |
| Cable outlet |
6-8mm |
| Degree of protection |
IP67 |
| Mechanical operation |
＞100 |
| Limiting temperature |
-40℃...+85℃ |
| Material group |
II |
| Material of contact |
copper alloy |
| Contact plating |
Au |
| Insulating material |
PA |
| Material of housing |
zinc diecasting nickel plated |
Downloads
Additional Information
| Device |
Connector |
| Type |
M12 | D COD | Cable | Circular |
