Product Details

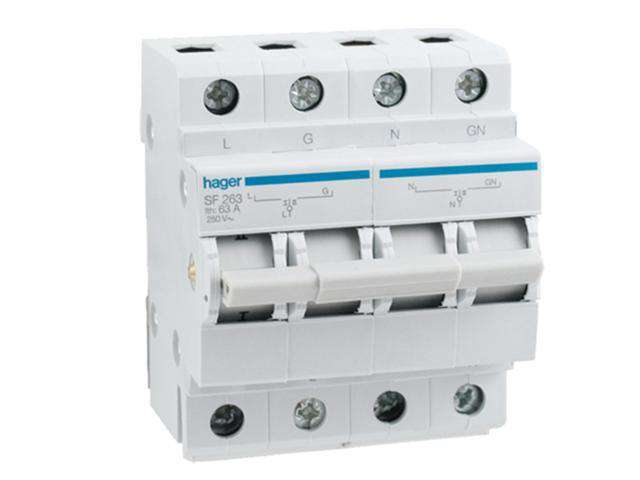

Hager DIN Rail Changeover Switch 63A 2POLES 4.5kA ON-OFF-ON 230V
Overview
Features
Specification
- Number of Modules : 4
- Number of Poles : 2P
- Type of Contacts : Changeover with Zero Position
- Rated Operational Voltage Ue : 230 V
- Rated current : 63 A
- Short Circuit Current Withstand with MCB : 63A Curve C -4,5kA
- Total Power Loss under IN : 3,6 W
- Frequency : 50/60 Hz
- Rated Insulation Voltage : 500 V
- Rated Impulse Withstand Voltage : 4000 V
- Operating Temperature : -20 to 50 °C
- Electrical Durability at Nominal Load in AC21 in Operating Cycles : 5000
- Number of Mechanical Operations : 100000
- Connection Cross-sect. Rigid Cable : 25mm²
- Connection Cross-sect. Flexible Cable : 16mm²
- Height of installed product : 90 mm
- Width of Installed Product : 71,5 mm
- Depth of Installed Product : 72 mm
