Product Details

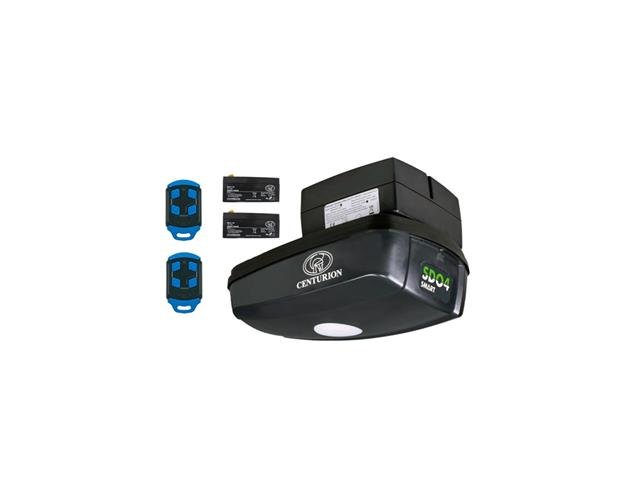

Centurion SD04 Smart (T10) Garage Door Drive Head Unit Relay Type, Includes: 2X12V 3.4A Batteries, 2X4 Button Remotes
SD04 Smart (T10) Garage Door
Specifications
- Input voltage : 230V AC @ 50/60Hz1
- Motor voltage : 24V DC
- Motor power - rated : 80W DC
- Max door width : 6500mm
- Max door area : 12 square metres
- Maximum push/pull force : 40kgf
- Max holding capacity : 1000N
- Operations in standby mode : Up to 90 depending on the door size / weight / height / duration of
- power failure / condition of batteries
- Maximum operator travel : speed2 9m/min
- Door travel adjustment : Physical Endstops (Automatic limit set)
- Safety obstruction force system : Built-in menu
- Light : LED 2W
- Autoclose3 : Menu Selectable
- Infrared safety beams : Menu Selectable (Optional, but recommended)
- Radio receiver : Code-hopping 433MHz
- IP Rating4 : IPX0 (For interior use only)
- Receiver code storage capacity : 20x 4-Button NOVA transmitters
Downloads
Additional Information
| Device | SD04 Smart (T10) |
| Type | Garage Door |
