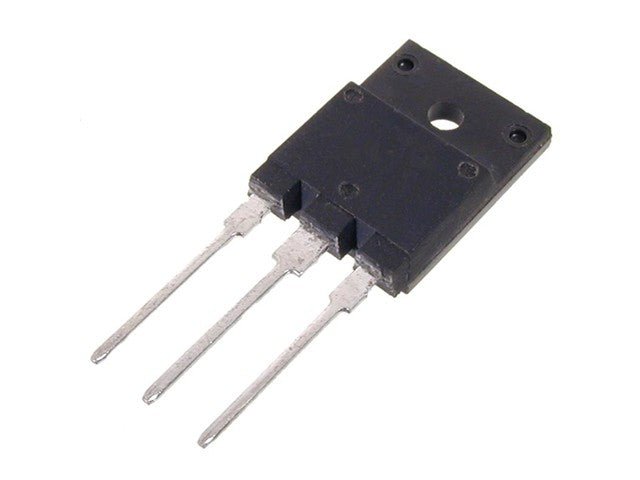

N + D 1500/800V 10A 45W TO-3PFa
N + D 1500/800V 10A 45W TO-3PFa
Specifications
- Type: Silicon NPN power transistor with built‑in damper diode
- Package: TO‑3P / SOT‑199 (insulated tab)
- Collector‑Base Voltage (VCBO): up to 1500 V
- Collector‑Emitter Voltage (VCEO): up to 800 V
- Collector Current (DC): 10 A
- Peak Collector Current: ≈ 25 A
- Power Dissipation: 45 W
- Junction Temperature: up to 150 °C
- Saturation Voltage (VCE(sat)): ~5 V @ 6 A
Additional Information
| Device | Transistor |
