Product Details

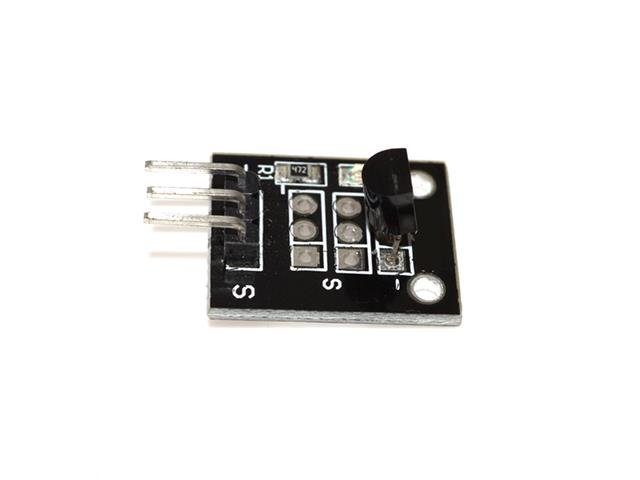

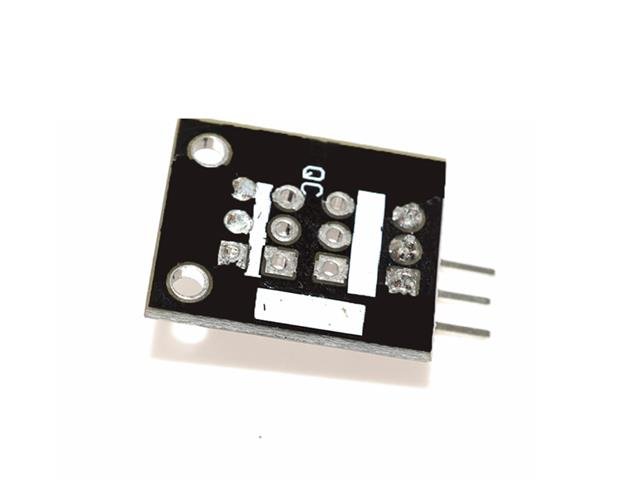

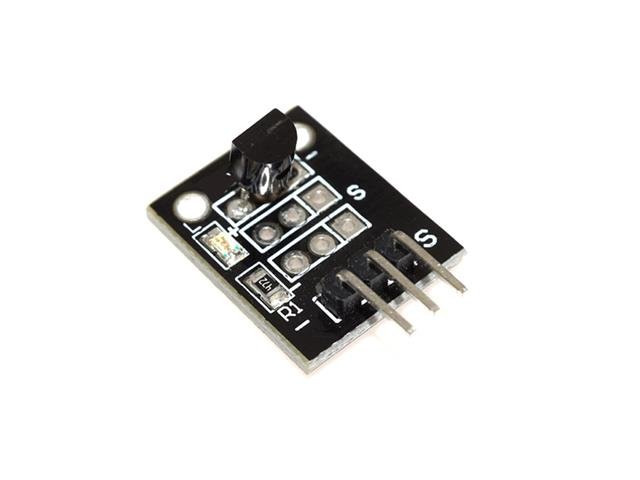

DS18B20 Temperature Sensor Breakout Board 3,3-5VDC
Temperature Sensor Breakout Board
Features
- This is DS18B20 digital temperature sensor module for Arduino -55℃~125℃Digital signal output
- Detect ambient air temperature
- Compatible with Arduino DIY project
- Main chip: 18B20 temperature sensor
- Material: PCB
Specifications
- Temperature Measurement Range : -55 °C ~ + 125 °C.
- Range Accuracy: ±0.5 °C.
- Working Power Supply: DC 3 ~ 5V.
- Measurement results in 9 ~ 12 digital quantity way serial transmission.
- Pins : (The pins silk print could be different from picture, but it works same)
- Y(S) - Arduino D12
- G(-) - Arduino GND
- R(+) - Arduino Power (3.3V/5V)

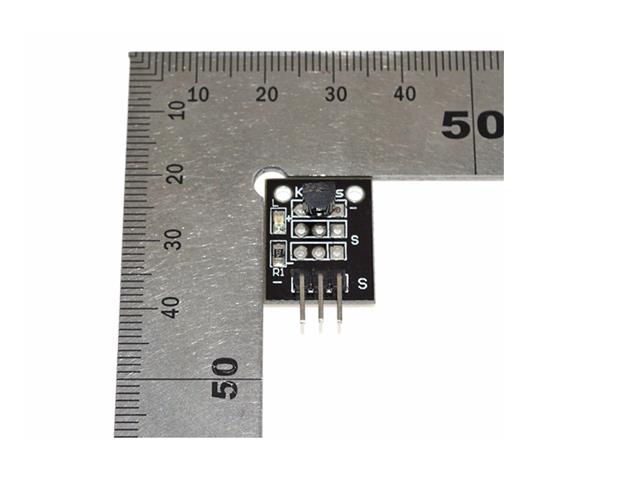

- Dimensions : L 20 x W 11 x H 12mm
Additional Information
| Device | Breakout Board |
| Type | Temperature Sensor |
