Product Details
4 Channel 5V Solid State Relay Module Board. ControL I/PSIGNAL Voltage: (0-2.5V State Low Relay Off) (3.3-5V State high Relay On). Rated Output Load: 2A AT 100 to 240VAC (50/60HZ). Load Voltage Range:75 to 264VAC (50/60HZ). Load Current:0.1 to 2 AMP.

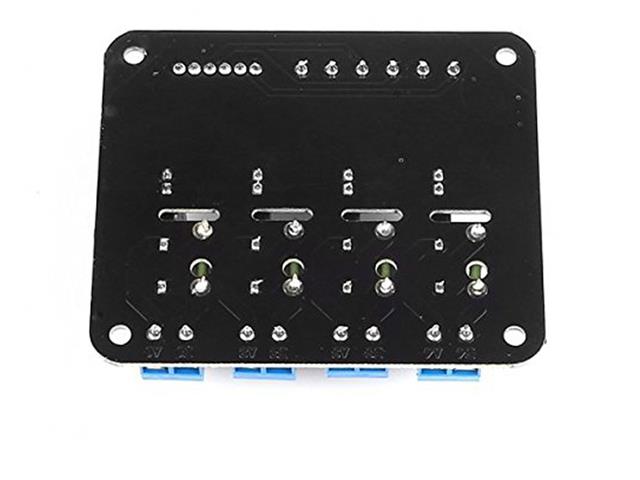

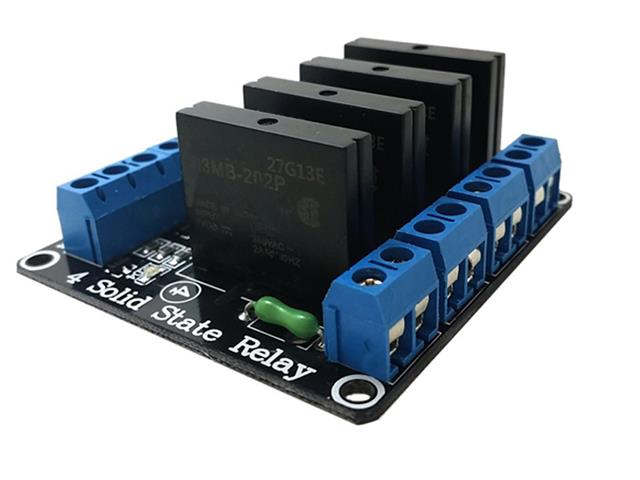

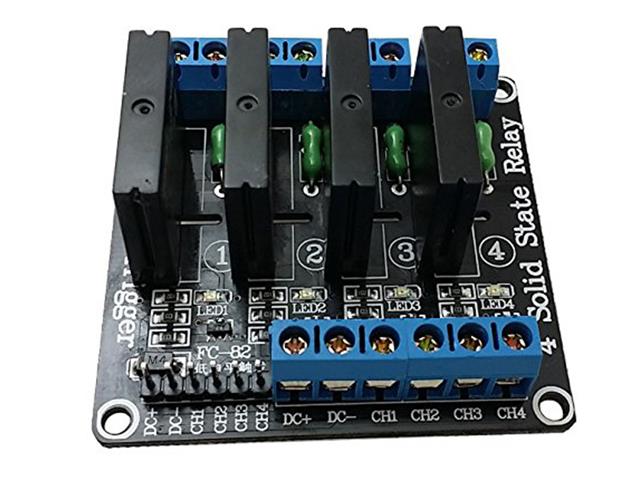

4 CH 5V Solid State Relay Module Board
Specifications
- Input control signal voltage: (0-2.5V state low relay OFF) (3.3-5V state high relay ON).
- Rated output load: 2A at 100 to 240VAC (50/60Hz).
- Load voltage range:75 to 264VAC (50/60Hz).
- Load current:0.1 to 2 AMP.
- Input Power supply:5VDC / 160mA (all channel ON).
- Pack Size:57 x 55 x 25mm.
- Weight:40g.
Additional Information
| Device | Relay Module Board |
| Type | 4 CH | 5V | Solid State |
