Product Details

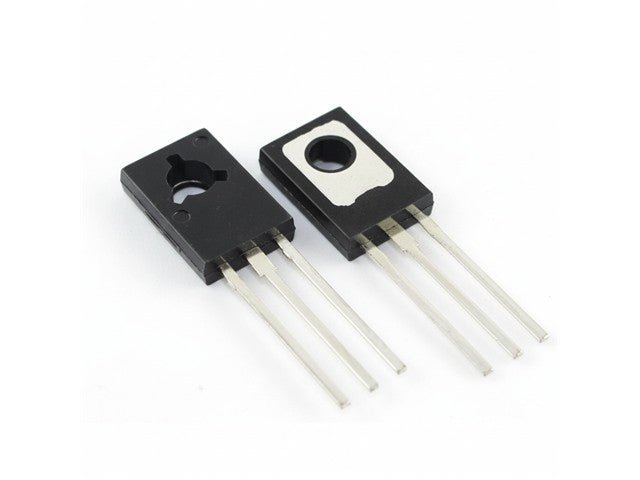

P 60V 60V 1A 63/160 TO126 Transistor
Transistor Silicon NPN
Specifications
- Material of Transistor: Si
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 12.5 W
- Maximum Collector-Base Voltage |Vcb|: 60 V
- Maximum Collector-Emitter Voltage |Vce|: 60 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 1.5 A
- Max. Operating Junction Temperature (Tj): 150 °C
Electrical Characteristics
- Transition Frequency (ft): 50 MHz
- Forward Current Transfer Ratio (hFE), MIN: 40
- Package: TO126
Additional Information
| Device | Transistor |
