Product Details

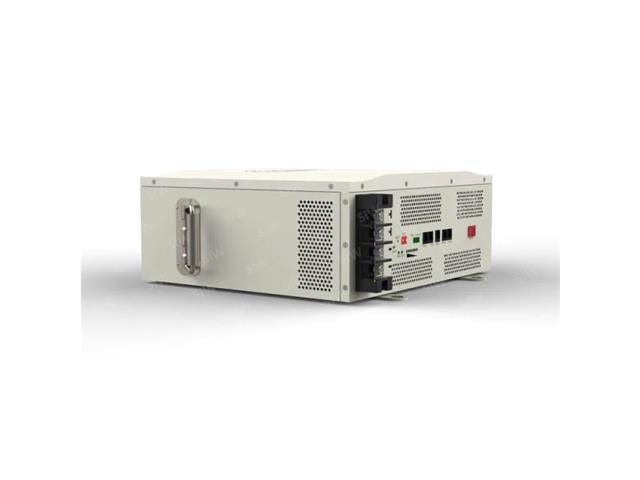

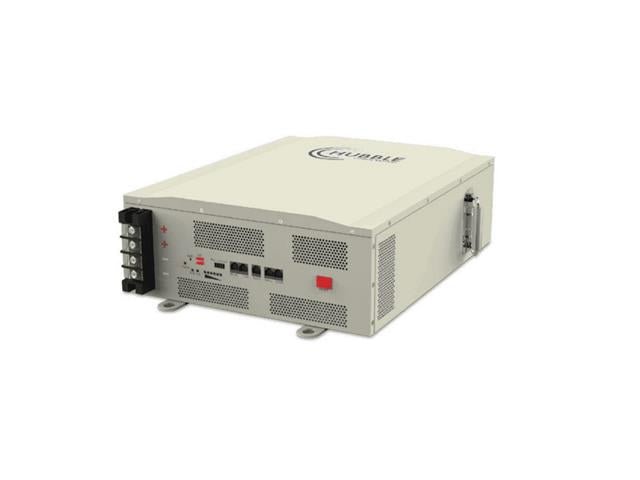

Hubble Lithium Ion Rechargeable Battery AM2-5500 48V 115A 5.5KWH, Charge/Discharge Current 105A,2xRS485 1xCAN BUS 1xRS232, Discharge Voltage:44.0V, Charge/Voltage(V): 53.8V,+/- 6000 cycles @ 50% DOD, Above 3000 Cycles @ 100% DOD,375x145x467mm, 42kg
Lithium Ion Rechargeable Battery
Features
- Capable of paralleling up to 15 x units in a single string giving a total storage capacity of 82,5kWh.
- 1C battery capable of providing a continuous charge/discharge power of 5.5kW.
- Versatile compatibility with leading inverter brands such as Victron, Kodak and Sunsynk.
- 10-year warranty, 15-year design life for the battery cells.
- Installation flexibility – the battery can either be wall-mounted or rack mounted.
- Remote monitoring via the optional Hubble device.
- Heavy duty side handles for easy handling and mounting on the wall.
Specifications
- Weight : 42 kg
- Battery Type : Lithium Ion
- Nominal Energy : 5520 Wh
- Depth of discharge : 100.00 %
- Voltage : 48 V
- Continuous Discharge Rate (Normal Use) : 5500 W
- Maximum Discharge Rate (5 Minutes) : 5500 W
- Surge Discharge Rate (15 Seconds) : 6000 W
- Maximum Charge Rate (5 Minutes) : 5500 W
- Compatible Inverter Brands:
- Kodak 48V Off-Grid Inverters
- Sunsynk 48V Inverters
- Victron 48V Inverters
Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Communica will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Downloads
Additional Information
| Device | Battery |
| Type | Lithium Ion | Rechargeable |
