Product Details

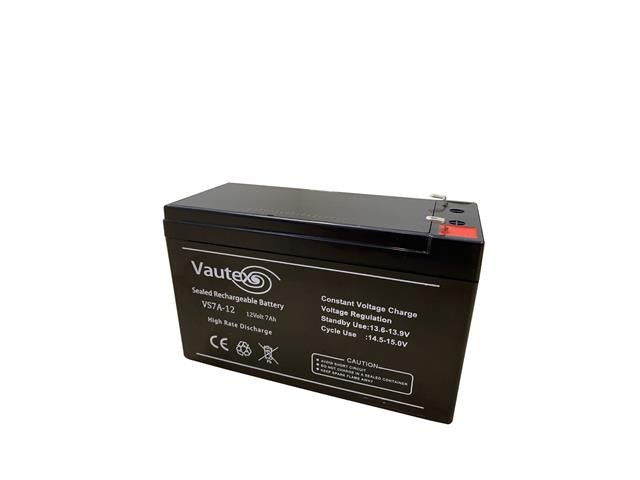

Rechargeable Battery 12V7AH { L=151 W=65 H=95mm } F1 Terminal 4.8mm 1.95kg
12V7AH Rechargeable Battery
Specifications
- Nominal Voltage : 12V
- Rated Capacity : 7Ah
- Dimensions
- Length : 151mm
- Width : 65mm
- Height : 95mm
- Total Height : 101mm
- Appoximate Weight : 1.95kg
Characteristics
- Capacity 77°F(25°C)
- 20hour rate (0.35 A) : 7Ah
- 10hour rate (0.65 A) : 5.85Ah
- 5hour rate (1.12 A) : 5.52Ah
- 1hour rate (4.76 A) : 3.90Ah
- 15min rate (13.2A) : 2.93Ah
- Internal Resistance
- Full Charged, 77°F(25°C) : 65mΩ
- Affected By Temperature (20hr Rate)
- 104°F(40°C) : 102%
- 77°F(25°C) : 100%
- 32°F(0°C) : 85%
- 5°F(-15°C) : 65%
- Self-Discharge 68°F
- Capacity after 3 month storage : 90%
- Capacity after 6 month storage : 80%
- Capacity after 12 month storag : 60%
- Max. Discharge Current 77°F((25°C) : 97.5A(5s)
- Terminal : F1
- Charge (Constant Voltage, 25°C)
- Cycle : 14.5V~14.9V(-24mV/°C)
- Float : 13.6V~13.8V(-18mV/°C)
Downloads
Additional Information
| Device | Battery |
| Type | 12V7AH | Rechargeable |
