Product Details

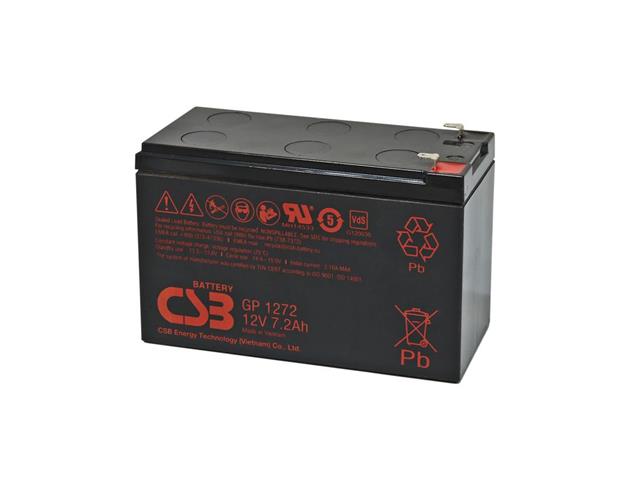

Rechargeable Battery 12V7.2Ah (L=150 W=64 H=94mm) F1 Terminal 4.8mm 2.4kg
Rechargeable Battery 12V7.2Ah
Specifications
- Nominal Voltage : 12V (6 cells per unit)
- Nominal Capacity : 7.2Ah @20hr-rate to 1.75V per cell @25°C (77°F)
- Weight : Approx. 2.40 Kg (5.29 lbs)
- Maximum Discharge Current : 100/130A (5sec)
- Internal Resistance : Approx. 23.0mΩ
- Short Circuit Current : 276A
- Maximum Charge Current : 2.16A
- Terminal types : F1
- Container Material : Container Material ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
Dimensions
- Length (L) : 150.9±2.0 mm 5.94±0.08 inch
- Width (W) : 64.8±1.0 mm 2.55±0.04 inch
- Container Height (h) : 94.3±1.0 mm 3.71±0.04 inch
- Overall Height (H) : 98.6±1.0 mm 3.88±0.04 inch
Downloads
Additional Information
| Device | Battery |
| Type | Rechargeable |
