Product Details

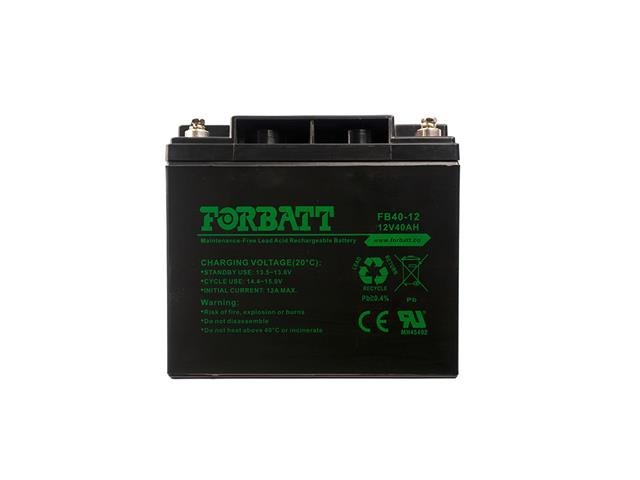

Rechargeable Battery 12V40AH (L=196 W=166H=168mm) T16 Terminal M6mm 12.5kg
Rechargeable Battery 12V40AH
Specifications
- Nominal Voltage : 12V
- Rated Capacity (20hr Rate) : 40Ah
- Dimensions
- Length : 7.72" (196mm)
- Width : 6.54" (166mm)
- Height : 6.61" (168mm)
- Total Height : 6.67" (177mm)
- Weight : Approx. 27.56lbs (12.5kg)
Characteristics
- Capacity 77°F(25°C)
- 20hour rate (2.00 A) : 40.0Ah
- 10hour rate (3.60 A) : 36.8Ah
- 5hour rate (6.80 A) : 34.0Ah
- 1hour rate (26.0 A) : 26.0Ah
- Internal Resistance
- Full Charged, 77°F(25°C) : 7mΩ
- Affected By Temperature (10hr Rate)
- 104°F(40°C) : 102%
- 77°F(25°C) : 100%
- 32°F(0°C) : 85%
- 5°F(-15°C) : 65%
- Self-Discharge 77°F(25°C)
- Capacity after 3 month storage : 90%
- Capacity after 6 month storage : 80%
- Capacity after 9 month storag : 60%
Charge (Constant Voltage)
- Initial Charge Current “LESS” than 12.0A
- Cycle : 14.4–15.0V/77°F(25°C)
- Stand By : 13.5–13.8V/77°F(25°C)
Downloads
Additional Information
| Device | Battery |
| Type | Rechargeable | 12V40AH |
