Product Details

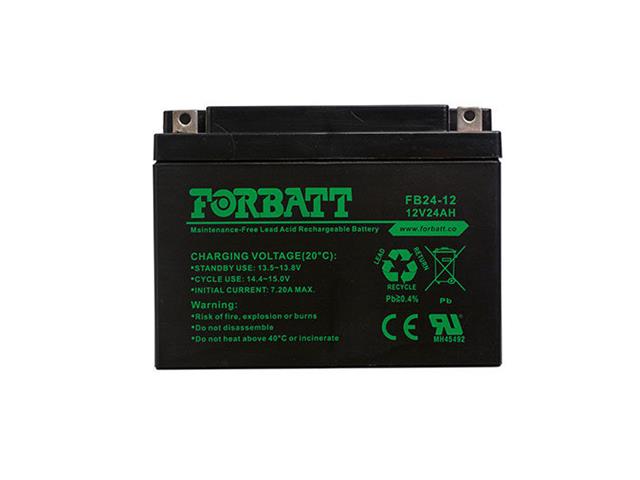

Rechargeable Battery 12V24AH (L=166 W=175 H=126mm) F3 Terminal ID:5.4mm for M5 Bolt & Nut, 7.51kg
Rechargeable Battery 12V24AH
Specifications
- Nominal Voltage : 12V
- Rated Capacity : 24Ah
- Dimensions
- Total Height : 6.54 inches (166mm)
- Height : 6.89 inches (175mm)
- Length : 4.96 inches (126mm)
- Width : 4.96 inches (126mm)
- Approximate Weight : 16.56 lbs. (7.51kg)
- Capacity 77°F(25°C)
- 20h rate (1.20A) : 24Ah
- 10h rate (2.16A) : 21.2Ah
- 5h rate (4.08A) : 20.1Ah
- 1h rate(15.6A) : 15.6Ah
- Internal Resistance
- Full Charged Battery 77°F(25°C) : Approx. 15mΩ
- Capacity Affected by Temperature (20h rate) :
- 104°F(40°C) : 102%
- 77°F(25°C) : 100%
- 32°F(0°C) : 85%
- 5°F(-15°C) : 65% .
- Self-Discharge 68°F(20°C) (Capacity after)
- 3 month storage : 90%
- 9 month storage : 85%
- 6 month storage : 65%
- Initial Charge Current "Less" than 7.20A
- Charge (Constant Voltage,25°C)
- Cycle : 14.4-15.0V/77°F(25°C)
- Stand By : 13.5-13.8V/77°F(25°C)
Characteristic
Downloads
Additional Information
| Device | Battery |
| Type | Rechargeable |
