Product Details
Wireless Outdoor Dual Curtain Motion Detector 30m, Anti-Masking, Freq:868.0~868.6 MHz, 4×PIR Sensor, IP54, 174×123×88mm, 615g

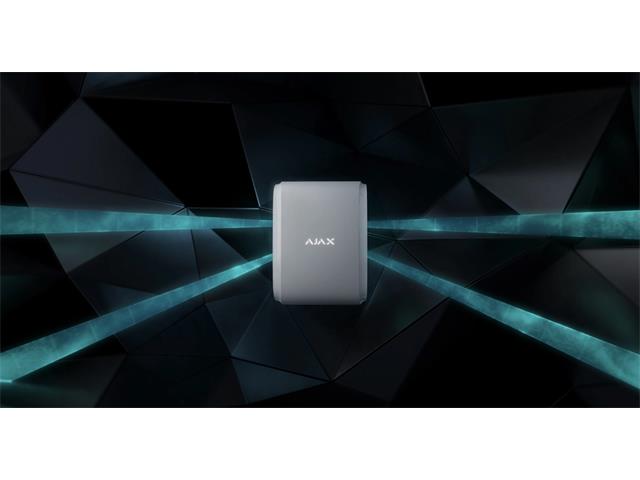

Dual Curtain Motion Detector
Overview
The Ajax line of street detectors now includes a bidirectional curtain motion detector that can monitor up to 30 meters of the perimeter, efficiently protecting the approaches to windows, doors, arches, fences, and window displays.
Specifications
- Compatibility : Hub Plus, Hub 2, Hub 2 Plus, ReX
- Sensing element : IR sensor, 2 on each side
- Motion detection distance : 4 to 15 meters (on each side, depends on settings)
- Detection angle, horizontal : 4.5°
- Possibility to deviate the horizontal viewing angle : Yes, by 3°
- Motion detection speed : From 0.3 to 2 m/s
- Pet immunity option : Pets up to 80cm in height
- Near area detection : Yes
- Protection against false triggering : Yes
- Tamper protection : Yes
- Protection against masking : Yes
- Installation : indoor and Outdoor
- Frequency band : 868.0 – 868.6 MHz
- Maximum radio signal strength : 6.35 mW (limit up to 20 mW)
- Radio signal modulation : GFSK
- Up to 1,700 m in an open space (in a perfect environment)
- Power supply : 2 CR123 batteries, 3 V
- Battery life : Up to 4 years
- Protection class : IP54
- Operating temperature range : -25°C to +60°C
- Operating humidity : Up to 95%
- Dimensions : 174 × 123 × 88 mm
- Weight : 615 g
- Warranty : 24 months
Downloads
Additional Information
| Device | Detector |
| Type | Dual | Curtain | Motion |
