Product Details

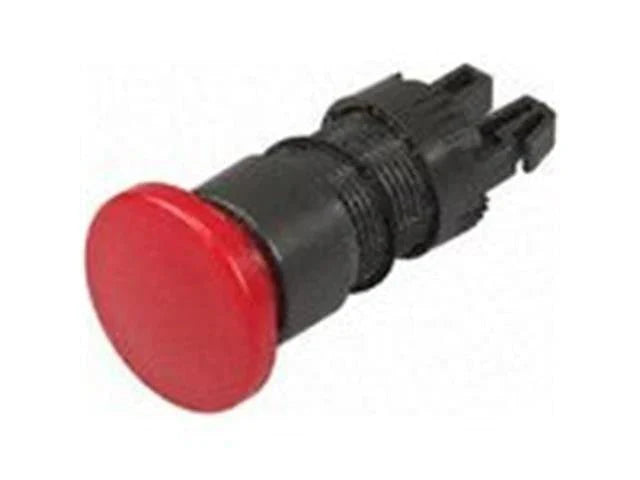

Mushroom Head Operator Red Momentary 24mm Panel Cutout = 16mm
Mushroom Head Operator Switch
Specifications
- Function : Momentary
- Current/voltage rating : 10mA 5VAC min. :6A 250VAC max. - 6A 12VDC max.
- Contact gap : > 1 mm (.039)
- Initial contact resistance : 10mΩ max. at 1A 4VDC
- Insulation resistance : 50 MΩ min.
- Dielectric strength : 750V between open contacts :5KV live to accessible
- Electrical life (resistive load) : 50.000 cycles
- Insulation : Class 2
- Lamp life : LED : 60.000 h min. to 75% relative luminosity - Filament : approx. 5.000 h Neon : approx. 10.000 h
- Panel thickness : 8 mm (.315) max.
- Operating temperature :-20°C to +55°C
- Solder heat resistance (IEC 68-2-20Tb, method 2) : 350°C, 5 sec.
- Degree of environmental
- IP 65 front of panel protection (IEC 529) : IP 40 back of panel
- Lamps : Midget Grooved T13/4, filament, LED or neon
- Switch terminals : Solder/quick-connect 2,8 mm (.110)
- Lamp terminals : Solder/quick-connect 2,8 mm (.110)
Downloads
Additional Information
| Device | Switch |
| Type | Mushroom | Head Operator |
