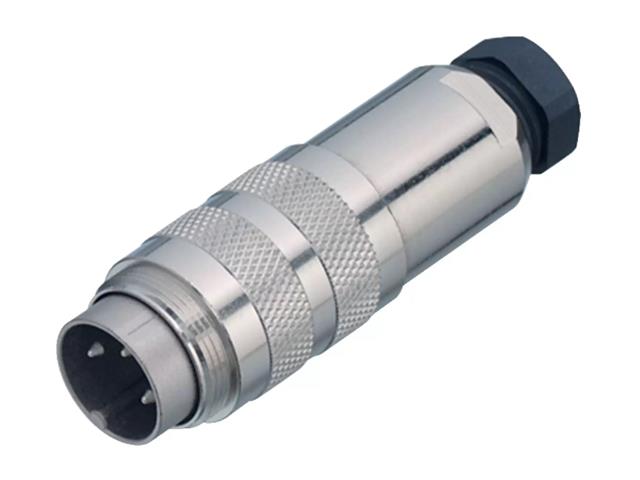

Circular Connector M16 Shield Cable Male Straight 7 POL DIN Gold plated contacts Screw lock 6mm Cable entry IP67
Circular Connector Male Straight
Specifications
| Part no. |
99 5125 19 07 |
| Connector design |
Male cable connector |
| Type standard |
DIN EN 61076-2-106 |
| Version |
Connector pin straight |
| Connector locking system |
screw |
| Termination |
solder |
| Degree of protection |
IP67 |
| Cross-sectional area |
max. 0.75 mm² / AWG 18 |
| Cable outlet |
4.0-6.0 mm |
| Temperature range from/to |
-30 °C / 95 °C |
| Mechanical operation |
> 500 Mating cycles |
| Weight (g) |
49.74 |
| Rated voltage |
125 V |
| Rated impulse voltage |
800 V |
| Rated current |
5.0 A |
| Insulation resistance |
≥ 1010 Ω |
| Pollution degree |
1 |
| Overvoltage category |
I |
| Insulating material group |
III |
| EMC compliance |
shieldable |
| Shield connection |
Shielding ring |
Additional Information
| Device |
Connector |
| Type |
Male | Gold Plated |
