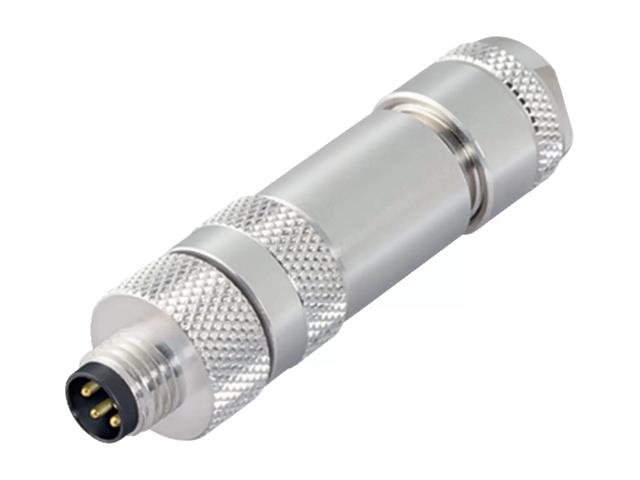

Circular Connector M8 Cable Male Straight, 3 Pole Screw Lock Screw Term 5,0mm Cable Entry Shield 4A 30V IP67
Circular Connector M8 Cable Male Straight
Specifications
| Part no. |
99 3361 100 03 |
| Connector design |
Male cable connector |
| Type standard |
DIN EN 61076-2-104 |
| Version |
Connector pin straight |
| Connector locking system |
screw |
| Termination |
screw clamp |
| Degree of protection |
IP67 |
| Cross-sectional area |
0.14-0.50 mm² / AWG 26-20 |
| Cable outlet |
4.0-5.5 mm |
| Temperature range from/to |
-40 °C / 85 °C |
| Mechanical operation |
> 100 Mating cycles |
| Weight (g) |
27.43 |
| Rated voltage |
30 V |
| Rated impulse voltage |
1500 V |
| Rated current |
4.0 A |
| Pollution degree |
3 |
| Overvoltage category |
III |
| Insulating material group |
II |
| EMC compliance |
shieldable |
| Shield connection |
Iris type spring |
Downloads
Additional Information
| Device |
Connector |
| Type |
Male |
