Product Details

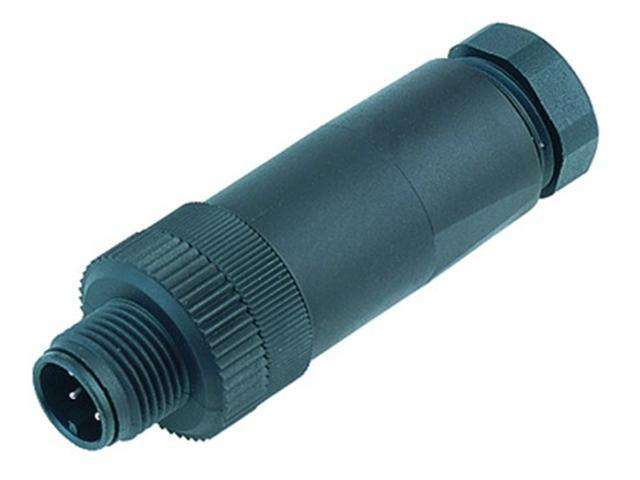

4 way M12 A-Coding Male Cable Circular Connector with 6~8mm cable outlet, plastic locking system and screw termination
Overview
Features
Specification
Â
| Connector locking system | Screw |
|---|---|
| Termination | screw |
| Wire gauge (mm) | 0,75 mm² |
| Wire gauge (AWG) | 18 |
| Cable outlet | 6 - 8 mm |
| Degree of protection | IP 67 |
| Mechanical operation | > 50 mating cycles |
| Upper temperature | +85 °C |
| Lower temperature | -40°C |
| Rated voltage | 250 V |
| Rated impulse voltage | 2500 V |
| Pollution degree | 3 |
| Overvoltage category | II |
| Material group | III |
| Rated current (40°C) | 4 A |
| Volume resistivity | 8 mO |
| Material of contact | CuZn (brass) |
| Contact plating | CuSnZn (Optalloy) |
| Material of contact body | PA |
| Material of housing | PA |
