Product Details

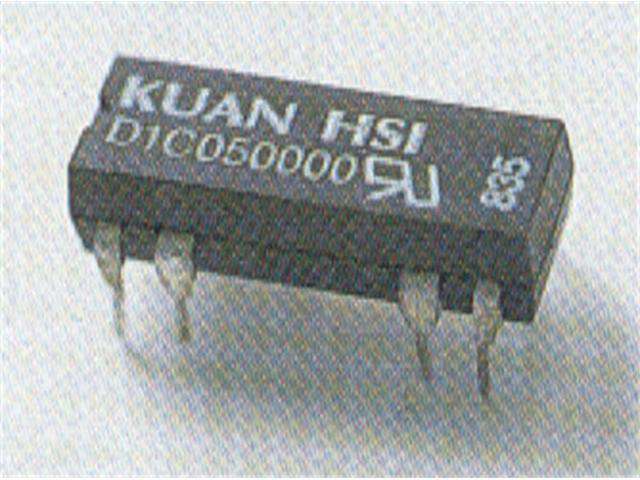

DIL Reed Relay • Form 1C • VCoil= 12V DC • IMax Switching= 250mA • RCoil= 500Ω • PCB Std Pin L/O • without Diode
Overview
Features
Specification
| Model | 831C-3 MOD |
| Contact Form | Form 1C |
| Size | 20x8x6mm |
| Termination | PCB |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 250mA |
| Electrical Rating | 250mA/100VDC |
| Coil Resistance | 500Ω |
| Isolation Voltage | 500V |
| Pin Layout | DIL |
| No. of Poles | 1 Pole(s) |
