Product Details

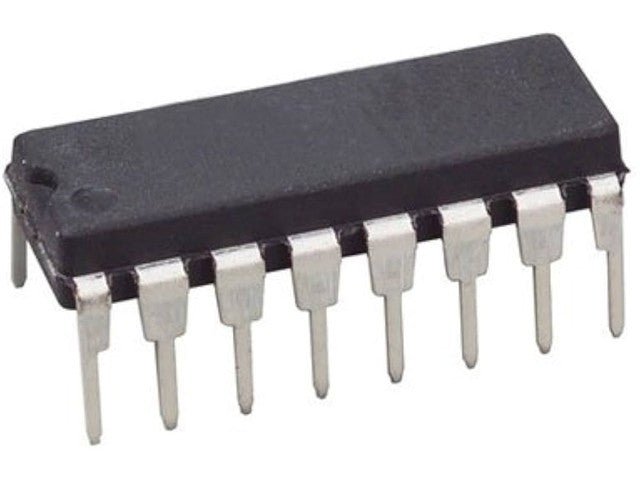

Demultiplexer/Deco Dual 2-4LN 16PD
Specifications
Electrical Characteristics
- Supply Voltage (Vcc): 4.75V – 5.25V
- Nominal Voltage: 5V
- Input HIGH (VIH): ≥ 2.0V
- Input LOW (VIL): ≤ 0.8V
- Output HIGH (VOH): ≥ 2.7V @ IOH = –0.4 mA
- Output LOW (VOL): ≤ 0.5V @ IOL = 8 mA
- Propagation Delay (tpd): Typical 15 ns
- Power Dissipation: Approx. 20 mW per device
Functional Characteristics
- Address Inputs per Decoder: 2 (A, B)
- Outputs per Decoder: 4 (Y0 – Y3, active LOW)
- Enable Input per Decoder: 1 (active LOW)
- Logic Function: When enable is active, one output goes LOW depending on the binary combination of the address inputs.
Absolute Maximum Ratings
- Vcc: 7V
- Input Voltage: –0.5V to 7V
- Operating Temperature: 0°C to +70°C
- Storage Temperature: –65°C to +150°C
Additional Information
| Device | IC |
