Product Details

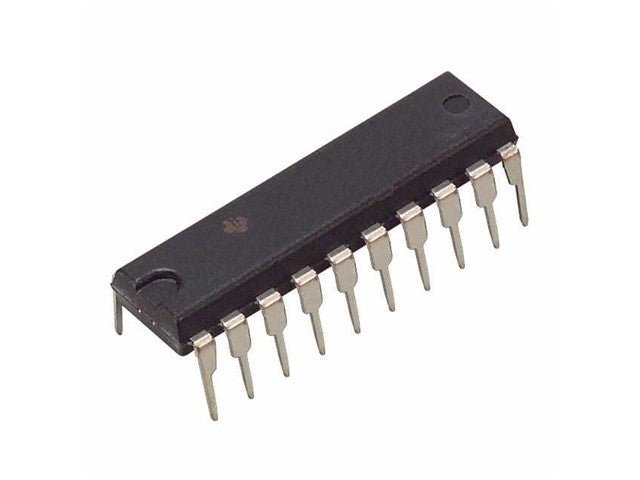

Flip Flop Octal D-Type With Clear 20PD
Specifications
|
Function
|
Master Reset
|
|
Type
|
D-Type
|
|
Output Type
|
Non-Inverted
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
8
|
|
Clock Frequency
|
37 MHz
|
|
Max Propagation Delay @ V, Max CL
|
29ns @ 5.5V, 50pF
|
|
Trigger Type
|
Positive Edge
|
|
Current - Output High, Low
|
4mA, 4mA
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
Current - Quiescent (Iq)
|
8 µA
|
|
Input Capacitance
|
3 pF
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
20-PDIP
|
|
Package / Case
|
20-DIP (0.300", 7.62mm)
|
Additional Information
| Device | IC |
