Product Details

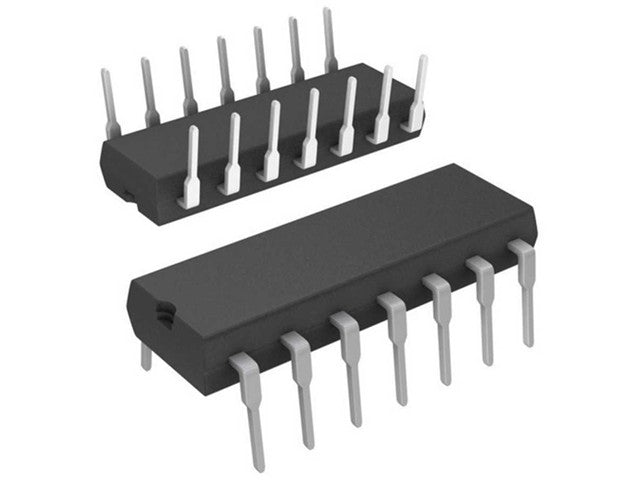

Gate NOR Positive Triple 3-Input 14PD(25)
Specifications
- Logic Type: Triple 3-input NOR gate
- Number of Gates: 3
- Inputs per Gate: 3
- Logic Function: Positive NOR ( +VE NOR )
- Supply Voltage (VCC): 2 V – 6 V
- Typical Supply Voltage: 5 V
- Output Current: ±5.2 mA (typical at 5 V)
- Propagation Delay: ~8 ns (typical at 5 V)
- Input Type: CMOS high-impedance inputs
- Package Type: DIP-14 (Dual In-line Package)
- Operating Temperature Range: −40 °C to +85 °C
- Logic Family: HC (High-Speed CMOS)
- Pin Count: 14 pins
Applications:
- Digital logic circuits
- Control systems
- Signal inversion and logic combination
- Embedded and microcontroller interfacing
