Product Details

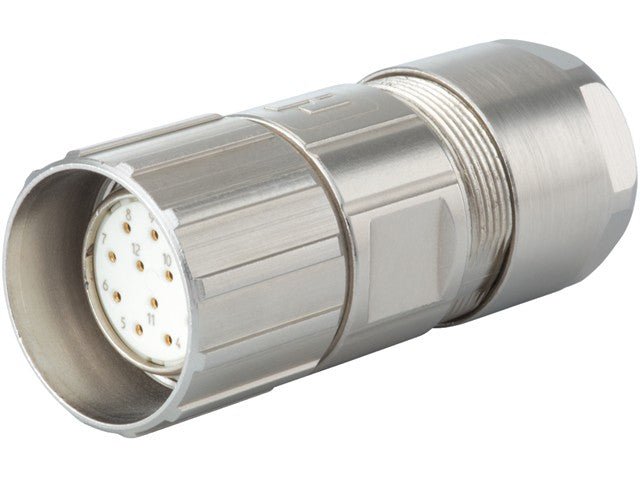

Circular Connector M23 Signal Cable, Housing Straight. Female Thread. Cable Clamp OD 3-7mm
M23 Signal Cable Circular Connector
Specifications
| Housing type | Cable |
| Material housing | Zinc Die Cast, brass |
| Material housing surface | Nickel |
| Insert | Socket |
| Version | Screw |
| Internal thread plug-in side | M23 x 1 |
| Knurled nut-Ø plug-in side | 27.2 mm |
| Locking type | Screw |
| Shield | shielded |
| Material seals/o-rings | NBR |
| Wrench size (SW1/SW2) | 24/24 mm |
| Cable diameter | 3 – 7 mm |
| Length (L) | 64.7 mm |
| Temperature range | -40°C to +125°C |
| Protection class | IP 67, IP 69 K |
Downloads
Additional Information
| Device | Connector |
