Product Details

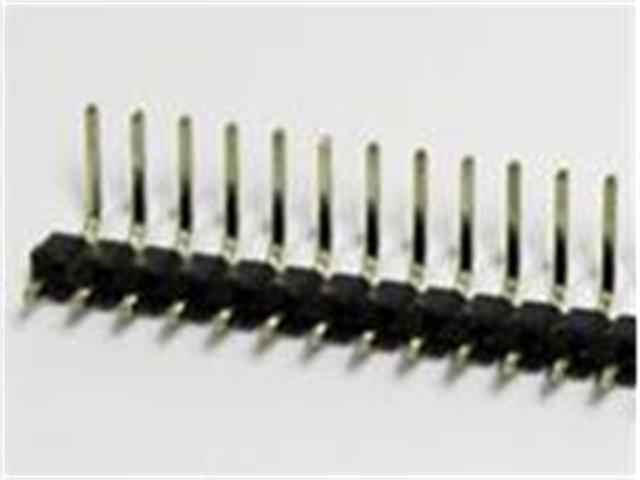

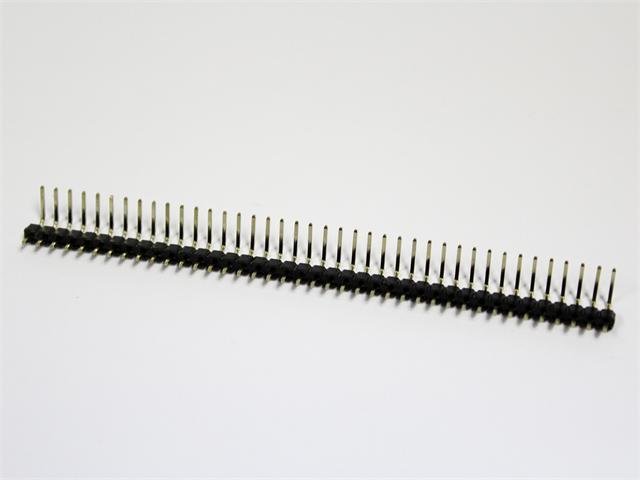

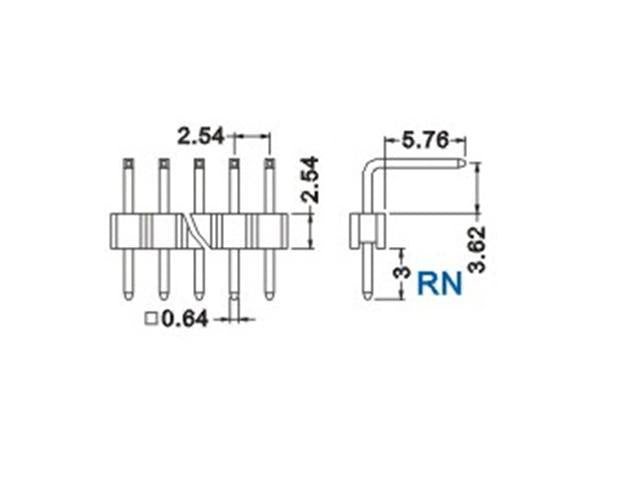

2.54mm PCB Pin Connector • 40 way in Single Row • Right Angled Pins • Gold Plated
PCB Pin Connector
Specifications
- Contact Resistance : 30mΩ max.at DC 100 mA
- Insulator Resistance : l000MΩ min.at DC 500V
- Current Rating : lAMP
Dielectric Withstanding
- Voltage : AC 500V For 1 minute
- Operating Temperature :-55°C ~ 105°C
- Contact : Brass
- Housing : PBT &30% Glass Fiber(UL 94V-0)
Additional Information
| Group0 | Pin Header |
| Group | PCB Connector |
| Device | Connector |
| Type | PCB |
| Gender | Pin |
| No. of Contacts | 40 |
| No. of Pins | 40 |
| Termination | Right Angled Pins |
| Pin Plating | Gold |
| Size | 2.54mm |
| Row Positions | Single Row |
