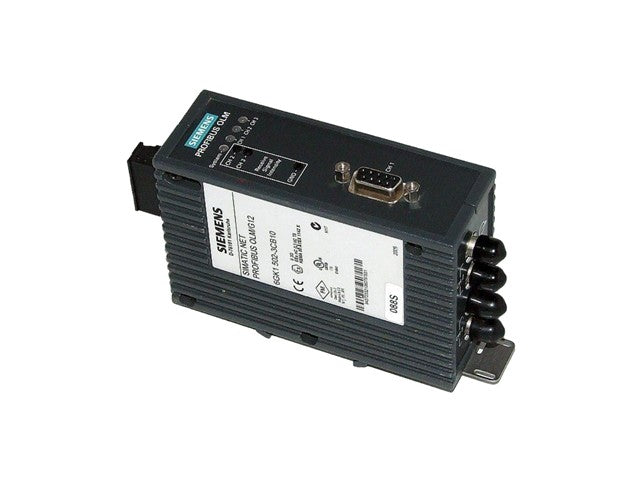

PROFIBUS OLM/G12 V3.1 Optical Link Module With 1 RS485 And 2 Glass Fiber-optic Cable Interfaces (4 BFOC Sockets)
PROFIBUS OLM/G12 V3.1 Optical Link Module
Specifications
- Product Name: SIMATIC NET PROFIBUS OLM/G12 V3.1 Optical Link Module
- Model Number: 6GK1502-3CB10
- Product Type: PROFIBUS fiber-optic link module
- Communication Protocol: PROFIBUS DP / PROFIBUS PA compatible speeds
- Transmission Rate: 9.6 kbit/s … 12 Mbit/s (PROFIBUS), 45.45 kbit/s (PROFIBUS PA)
- Electrical Interface: 1 × RS-485
- Optical Interfaces: 2 fiber-optic interfaces with 4 BFOC sockets
- Optical Cable Type: Glass fiber (standard)
- Max Fiber Distance: Up to approx. 2850 m (standard range)
- Diagnostic Outputs: Signaling contact & measuring output
- Supply Voltage : 24 V DC
- Power Consumption: Typical industrial level (spec value depends on configuration)
- Weight : Approx. 0.60 kg
- Dimensions: Approx. 124 × 192 × 51 mm (packaging data)
- Operating Temperature Range: Industrial standard (e.g., 0 … +60 °C typical)
- Protection Class: IP20
- Mounting: DIN-rail or panel mounting
- Lifecycle Status: Discontinued; successor: 6GK1503-3CB00
- Country of Origin: Germany
