Product Details
Communications Processor CP 1613 A2 PCI Card (32-bit; 33 MHz/ 66 MHz; 3, 3 V/5 V universal key) For Connecting to Industrial Ethernet (10/100 Mbit/s) With ITP and RJ 45 Connection

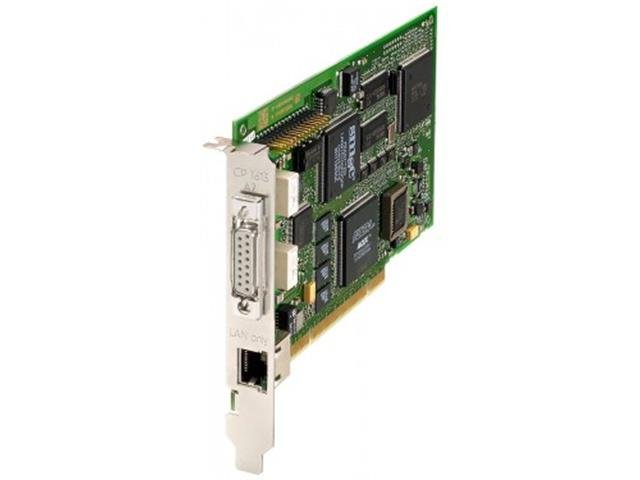

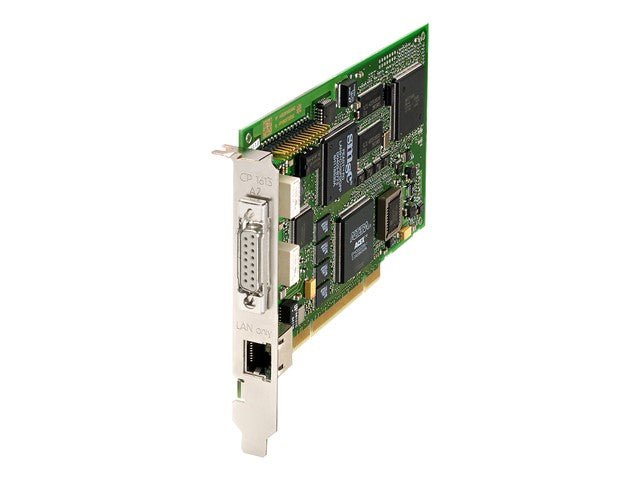

Communications Processor CP 1613 A2 PCI Card
Specifications
- Product Number: 6GK1161-3AA01
- Brand: Siemens
- Product Family: SIMATIC NET
- Model: CP 1613 A2
- Product Type: Communication Processor (PCI Card)
- Application: Industrial Ethernet interface for PC-based automation systems
Communication & Interfaces
- Interface Type:
- PCI card (32-bit)
- Ethernet Ports:
- 1 × RJ45 port
- 1 × 15-pin ITP interface
- Transmission Speed:
- 10 Mbit/s
- 100 Mbit/s
- Supported Protocols:
- HARDNET-IE S7
- S7-REDCONNECT
- Operating Frequency:
- 33 MHz / 66 MHz
- Voltage Compatibility:
- 3.3 V / 5 V universal key PCI slot
Power & Electrical
- Supply Voltage:
- 5 V DC
- 12 V DC
- Power Consumption:
- Approx. 4 W
- Relative Humidity:
- Up to 95% (non-condensing)
Mechanical Specifications
- Module Type:
- PCI plug-in card

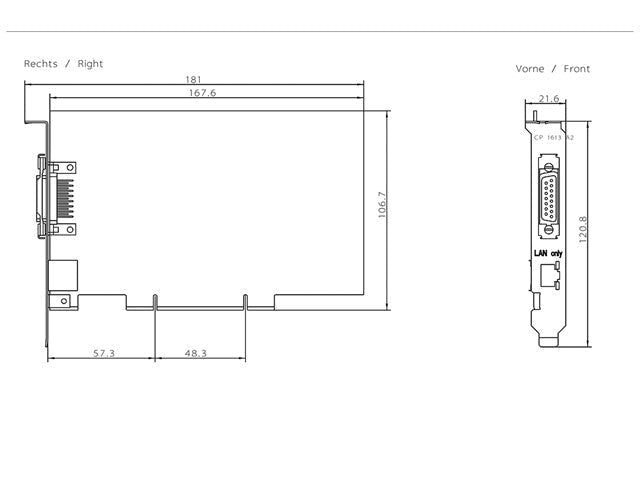

- Dimensions (Approx.):
- 167 × 107 × 21.6 mm
- Weight:
- Approx. 0.14–0.30 kg
Functional Features
- Primary Role:
- Connects industrial PCs to Industrial Ethernet networks
- Typical Use Cases:
- PC-based control systems
- SCADA communication
- Industrial data exchange
Lifecycle & Replacement
- Product Lifecycle Status:
- Discontinued (Cancelled since 22 June 2018)
- Successor Product:
- 6GK1162-3AA00 (CP 1623 PCI Express)
- Country of Origin:
- Germany
Downloads
Additional Information
| Device | PCI Card |
| Type | Communications | Processor | CP | 1613 | A2 | PCI | Card |
