SIMATIC DP, DP/DP Coupler Coupling Module For Connecting Two PROFIBUS DP Networks Redundant Current Infeed

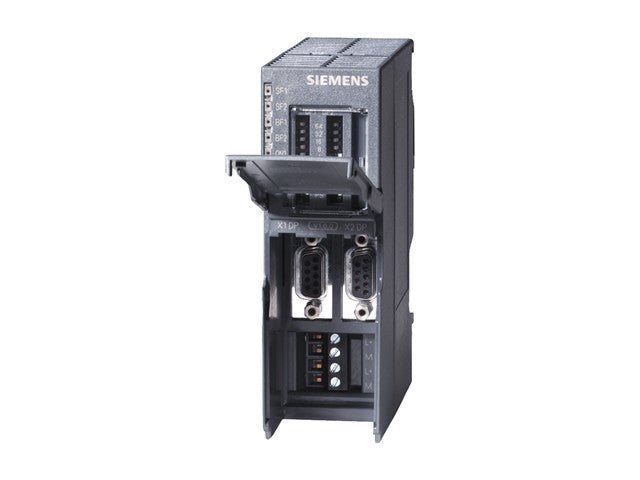

SIMATIC DP, DP/DP Coupler Coupling Module
Specifications
- Product Name: SIMATIC DP/DP Coupler Coupling Module
- Part Number: 6ES7158-0AD01-0XA0
- Product Family: SIMATIC DP / DP Coupler
- Function: Coupling module for connecting two PROFIBUS DP networks with redundant current infeed
- Supply Voltage (Rated): 24 V DC nominal
- Permissible Voltage Range: 20.4 — 28.8 V DC
- Current Consumption: Typ. 90 mA
- Power Loss (Typ.): 2 W
- Communication Protocol: PROFIBUS DP
- Diagnostics / Status Indicator: Yes (status LEDs)
- Protection Class: IP20
- Mounting Type: DIN rail / control cabinet
- Ambient Operating Temperature: 0 °C — +60 °C

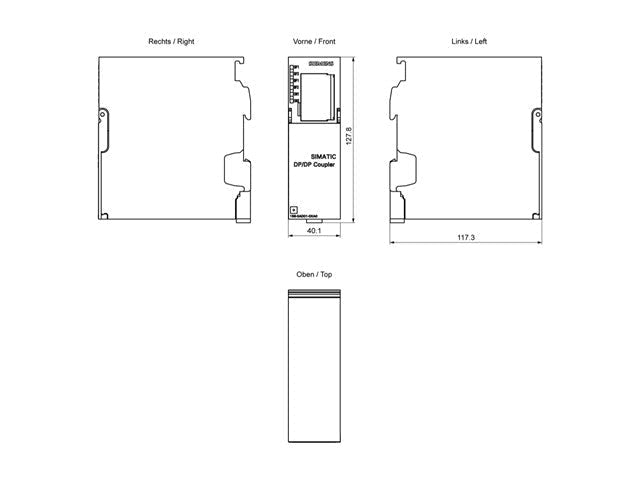

- Dimensions (W × H × D): Approx. 40 mm × 127 mm × 117 mm
- Weight Approx.: ~0.30 kg
- Country of Origin: Germany
- Product Status: Active
Downloads
Additional Information
| Device | Coupling Module |
| Type | SIMATIC | DP | DP/DP | Coupler | Coupling | Module |
