Product Details

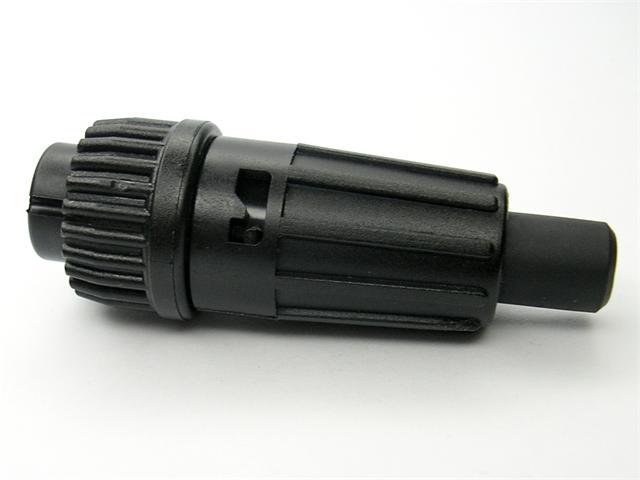

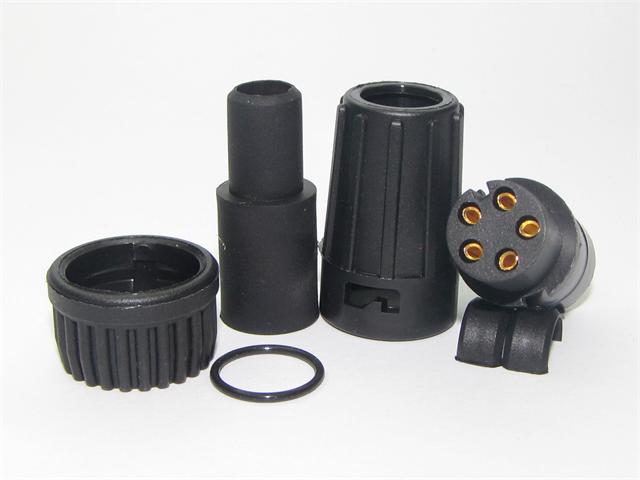

Mini-Con-X 5-position Cable End Pin Connector with Contact Size #16 Gold plated Solder Cup style Pins and Long Backshell with 5.6~6.3mm extended Grommet
Downloads
Additional Information
| Group | Mini-Con-X Connector |
| Device | Connector |
| Type | Cable End Pin |
| Highlights | Contact Size #16 | Long Twist Lock Backshell with extended Grommet and Cable grip |
| Gender | Pin |
| No. of Contacts | 5 |
| No. of Pins | 5 |
| Termination | Solder Cup |
| Pin Plating | Gold |
| Size | 5.6~6.3mm Grommet |
