Product Details

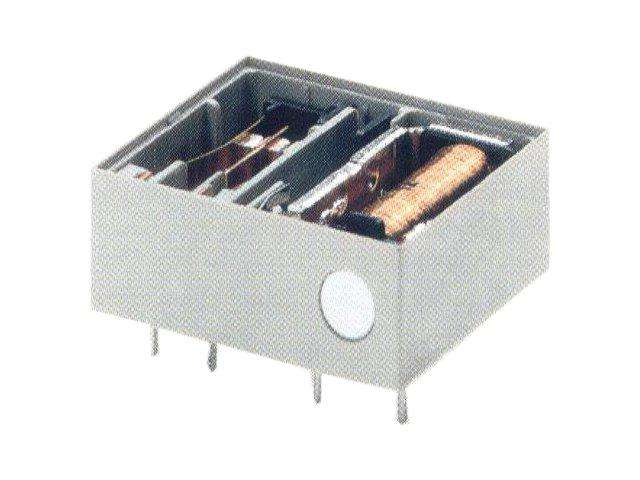

Medium - Hi Power Relay • Form 1C • VCoil= 12V DC • IMax Switching= 8A • RCoil= 330Ω • PCB • Horizontal Case
Overview
Features
Specification
- Horizontal Case
- Insulation Class C
- 8mm Creepage Distance
| Model | 422-01-12VDC |
| Contact Form | Form 1C |
| Size Category | Std Size |
| Size | 28x25x10mm |
| Termination | PCB |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 8A |
| Electrical Rating | 8A/250VDC/400VAC |
| Coil Power | 400mW Power |
| Coil Resistance | 330Ω |
| Isolation Voltage | 4KV |
| Approvals | UL/CSA/VDE/SEV/S/D |
| Contact Material | Ag |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
