Product Details

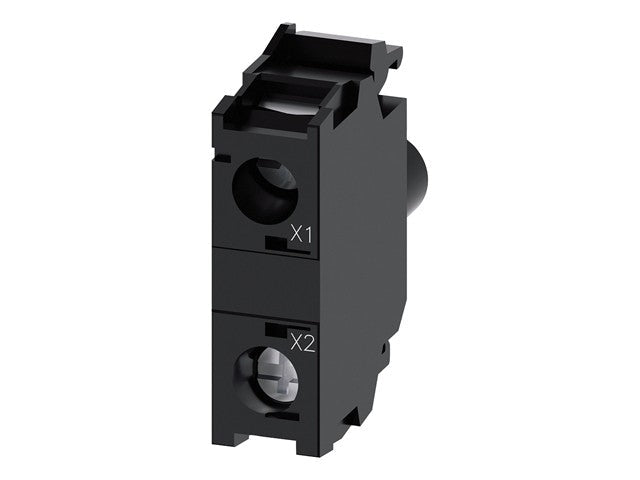

LED Module With integrated LED 110 V AC, Green, Screw Terminal, For Front Plate Mounting
LED Module With integrated LED
Specifications
- Product Name: LED indication module, green
- Series: Siemens SIRIUS ACT 3SU1
- Voltage Rating : AC 110 V (±20%)
- Frequency: 50/60 Hz
- Light Source: LED (integrated)
- LED Colour: Green
- Current Consumption: Max. 20 mA
- Connection Type: Screw terminals
- Mounting Type: Front panel mounting
- Switch Panel Cut-out: 22 mm standard
- Rated Insulation Voltage: 320 V
- Surge Voltage Withstand: 4 kV
- Protection Rating: IP40 (housing) / IP20 (terminals)
- Shock Resistance: IEC 60068-2-27
- Vibration Resistance: IEC 60068-2-6
- Typical Operating Life: ~100 000 h
- Operating Temp.: –25 °C to +70 °C
- Storage Temp.: –40 °C to +80 °C
- Pollution Degree: 3
- Weight: ~10 g
- Country of Origin: Czech Republic
Downloads
Additional Information
| Device | LED Module |
| Type | LED | Module | Integrated | LED |
