Product Details

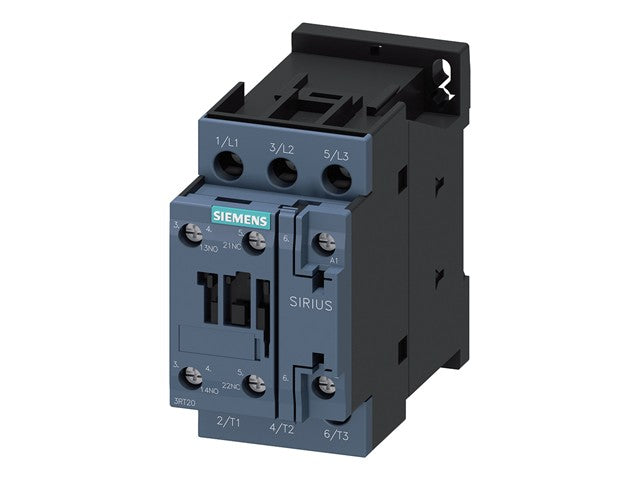

Power Contactor, AC-3E/AC-3, 32 A, 15 KW / 400 V, 3-Pole, 230 V AC, 50 HZ, Auxiliary Contacts: 1 NO + 1 NC, Screw Terminal, Size: S0
Specifications
- Product brand name: SIRIUS
- Product designation/type: Power contactor, series 3RT2
- Size of contactor: S0
- Main contacts: 3-pole, 3 NO contacts
- Auxiliary contacts: 1 NO + 1 NC (integrated)
- Rated current (AC-3) at 400 V: 32 A
- Rated current (AC-3) at 500 V: 32 A
- Rated current (AC-3) at 690 V: 21 A
- Rated current (AC-1) at 400 V (40 �C): 50 A
- Rated current (AC-1) up to 690 V (40 �C): 50 A
- Rated current (AC-1) up to 690 V (60 �C): 42 A
- operating current for ~200 000 cycles (AC-4) at 400 V: 12 A
- Insulation voltage (rated value): 690 V
- Surge voltage resistance (rated): 6 kV
- Protection class: IP20 (front and terminals)
- Ambient temperature (operation): �25 �C to +60 �C
- Ambient temperature
