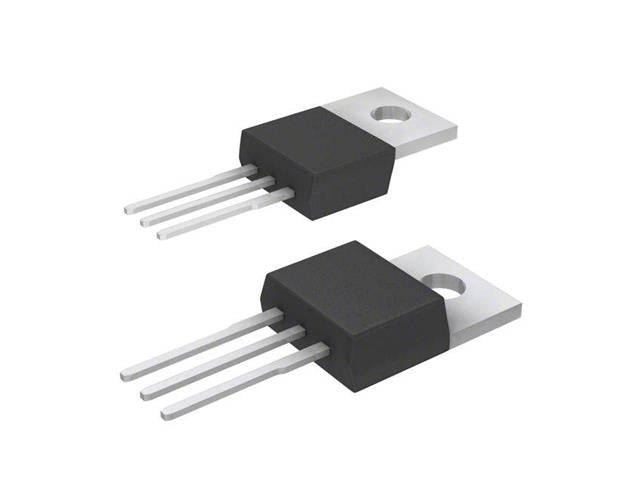

Name: 2N6388
Brand: Communica
SKU: 2N6388
Price: 9.00 AED
Availability: OutOfStock

N 80V 80V 65W 10A 1KMN TO220 Transistor

Specifications

Mounting Style:	Through Hole
Package/Case:	TO-220-3
Transistor Polarity:	NPN
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	80 V
Collector- Base Voltage VCBO:	80 V
Emitter- Base Voltage VEBO:	5 V
Maximum DC Collector Current:	10 A
Pd - Power Dissipation:	65 W
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 150 C
Series:	2N6388
Packaging:	Tube
Continuous Collector Current:	10 A
DC Collector/Base Gain hFE Min:	100, 1000
Height:	9.28 mm
Length:	10.28 mm
Product Type:	BJTs - Bipolar Transistors

Downloads

CatGroup	Transistor
Device	Transistor
