Product Details

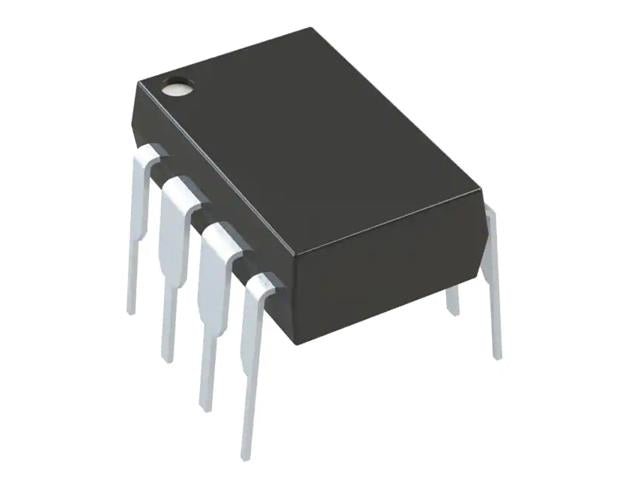

128k (16k x 8) CMOS Serial EEPROM with Write Protect
Specifications
- Memory Type : Non-Volatile
- Memory Format : EEPROM
- Memory Size : 128Kbit
- Memory Organization : 16K x 8
- Memory Interface : I²C
- Clock Frequency : 400 kHz
- Write Cycle Time - Word, Page : 5ms
- Access Time : 900 ns
- Voltage - Supply : 2.5V ~ 5.5V
- Operating Temperature : 40°C ~ 85°C (TA)
- Mounting Type : Through Hole
- Package / Case : 8-DIP (0.300"", 7.62mm)
Downloads
Additional Information
| Keywords | ROM, PROM, EPROM, EEPROM, I2C, Two Wire, CMOS |
| Device | Memory |
