Product Details

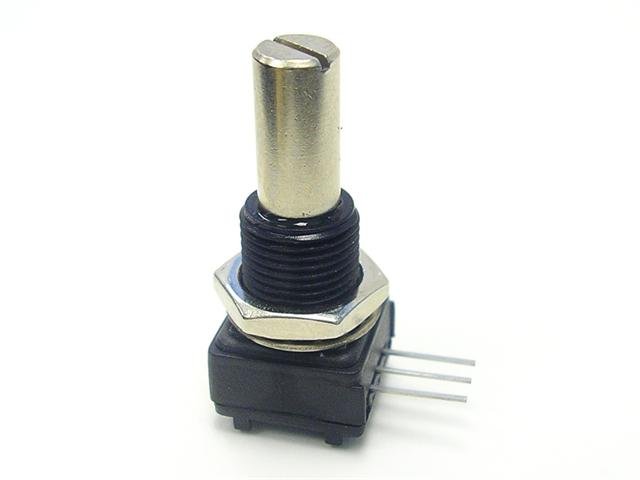

Single turn Cermet Rotary Control Potentiometer, Model : 249, Size 12.7mm Sq. • PCB • 1W @ 70°C • 5kΩ • ±10% • 1 Turn 295°
Downloads
Additional Information
| Model | 249 |
| Device | Cermet Rotary Control |
| Type | Single turn |
| Size | 12.7mm Sq. |
| Termination | PCB |
| Tolerance | ±10% |
| Tolerance Code | K |
| Element Type | Cermet |
| No. of Turns | 1 Turn 295° |
| Mechanical Life | 25 000 Cycles |
| Mounting Style | Bush Mount |
| Shaft Diameter | 6.35mm |
| Shaft Type | Metal |
