Product Details

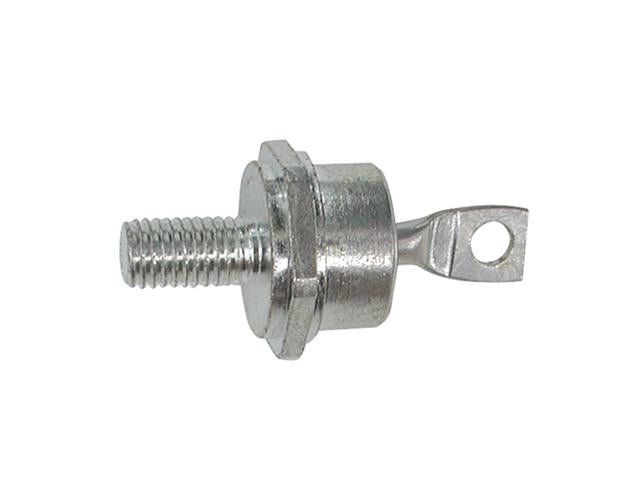

FREC Diode 100V 20A DO203AB
Specifications
|
Voltage - DC Reverse (Vr) (Max)
|
100 V
|
|
Current - Average Rectified (Io)
|
20A
|
|
Voltage - Forward (Vf) (Max) @ If
|
1.4 V @ 63 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Reverse Recovery Time (trr)
|
200 ns
|
|
Current - Reverse Leakage @ Vr
|
50 µA @ 100 V
|
|
Capacitance @ Vr, F
|
150pF @ 10V, 1MHz
|
|
Mounting Type
|
Stud Mount
|
|
Package / Case
|
DO-203AB, DO-5, Stud
|
|
Supplier Device Package
|
DO-203AB (DO-5)
|
|
Operating Temperature - Junction
|
-65°C ~ 150°C
|
Downloads
Additional Information
| Device | Diode |
| Type | FREC | 100V | 20A | DO203AB |
