Product Details

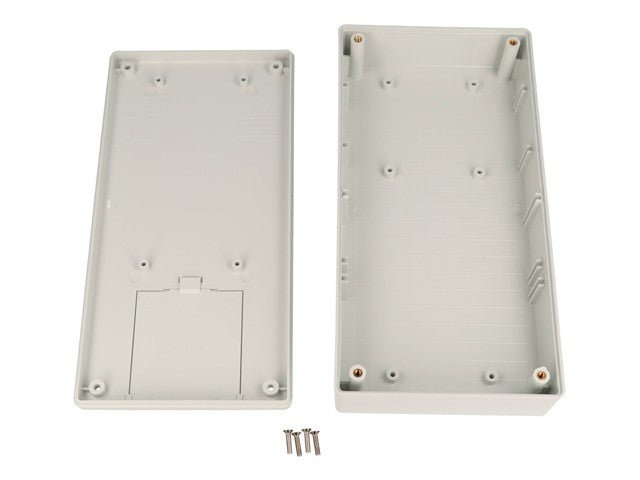

ABS Flame Retardent Enclosure Handheld 220 X110 X 45MM Grey With Battery Compartment IP54
ABS Flame Retardent Enclosure Handheld
Feature(s)
- Attractively styled and ergonomically designed for use as a “hand-held†instrument enclosure.
- Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Recessed top for membrane display or pad.
- Lap joint construction provides protection against dust accumulation and splashing water.
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
- Lid is secured with Philips machine screws, threaded into tapped integral brass bushings.
- Perfect for applications with repetitive assembly and disassembly are required.
- Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
Specifications
| Size L x W x H | 8.66 in x 4.33 in x 1.73 in (220 mm x 110 mm x 44 mm) |
|---|---|
| Shipping Weight | 0.55 lbs (0.25 kg) |
| UNSPSC | 39121301 |
| UPC | 623980998961 |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| Product Category | Enclosures |
| Type | Hand-held, battery door |
| Max. P.C. Board Length (mm) | 96.5 |
| Max. P.C. Board Width (mm) | 140 |
Downloads
Additional Information
| Device | Enclosure |
| Type | ABS | Flame | Retardent | Handheld |
| Highlights | Battery Compartment IP54 |
