Product Details

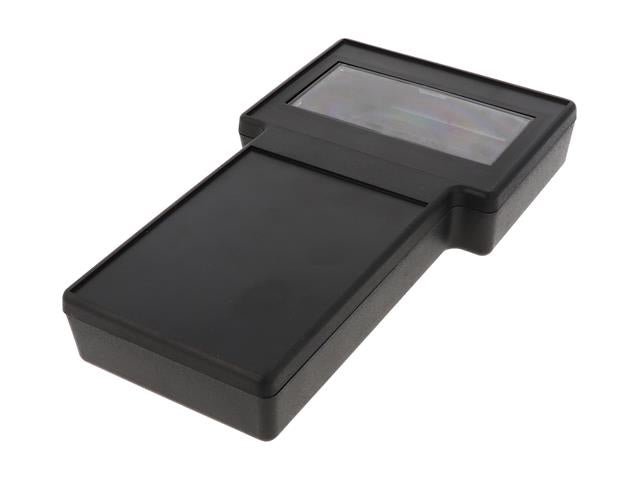

ABS Hand Held Enclosure with Solid Display Area
ABS Hand Held Enclosure
Feature(s)
- Perfect for instrument or mobile data enclosures requiring a keypad and display.
- Available with either a solid display area or an opening with a clear lens.
- Solid display area is 122mm x 85mm (4.8” x 3.4”) and will accommodate display boards up to 118mm x 60mm (4.6” x 2.37”).
- Clear polycarbonate lens 102mm x 45mm (4.0” x 1.77”) and a plain mylar mask kit allows for installation of a wide variety of display boards with the protection of the clear lens and dressed by the mylar frame.
- The lens fits snugly into the case and provides protection from dirt and dust.
- Molded from flame retardant ABS plastic with a UL flammability rating of UL94 V-0 in black or grey.
- The back of the case has been designed to accept a magnetic strip or hook and loop fabric mounting tab, available separately.
- The display area has been insert tooled in order to provide the capability of custom molding a low-cost display area to specific requirements.
Specifications
| Size L x W x H | 5.1 in x 9.21 in x 1.35 in (130 mm x 234 mm x 34 mm) |
|---|---|
| Shipping Weight | 0.52 lbs (0.24 kg) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Hand held, T-case |
| Max. P.C. Board Length (mm) | 117.58 |
| Max. P.C. Board Width (mm) | 222.58 |
Downloads
Additional Information
| Device | Enclosure |
| Type | ABS | Hand Held |
