Product Details

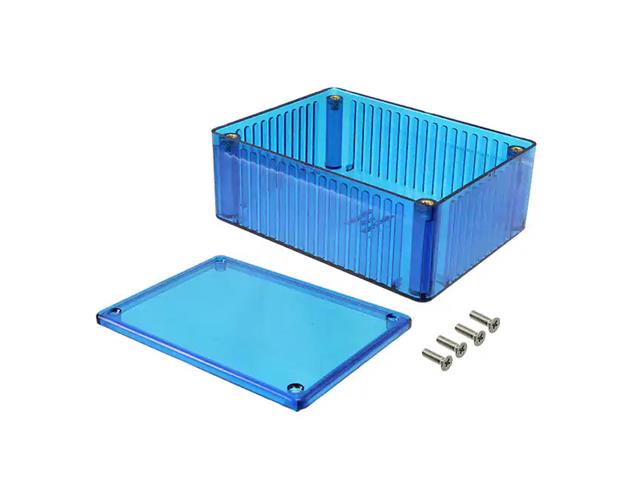

Translucent Polycarbonate Enclosure Blue
Translucent Polycarbonate Enclosure
Feature(s)
- Ideally suited for mounting printed circuit boards.
- Perfect for applications where parts, sensors or indicators need to be visible.
- Ice Blue version is almost totally transparent to blue, white and near white LEDs, readouts & displays.
- Crystal Clear version is almost totally transparent.
- IR Red version is almost totally transparent to infrared devices.
- Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Molded from flame retardant, easy to machine, translucent polycarbonate (material carries a UL flammability rating of 94V-0).
- Lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings.
Specifications
- Size L x W x H : 109 mm x 81 mm x 41 mm
- Shipping Weight : 0.23 lbs (0.10 kg)
- UNSPSC : 39121301 v
- UPC : 62398053319
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : Polycarbonate
- Color : Trans. Blue
- Flame Rating : UL94 V-0
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : project box, general purpose
Downloads
Additional Information
| Device | Enclosure |
| Type | Translucent | Polycarbonate |
